Mechanical
|
|
Dimensions
|
88 x 40 x 230 mm (3.5 x 1.6 x 9.1")
|
|
Weight
|
400 g (14.1 oz)
|
|
Enclosure material
|
Die-cast aluminum
|
|
Mounting
|
Pole mounting (Kit included)
|
|
Wind loading
|
342.5 N at 200 km/h (77 lbf at 125 mph)
|
|
Hardware
|
|
|
Networking interface
|

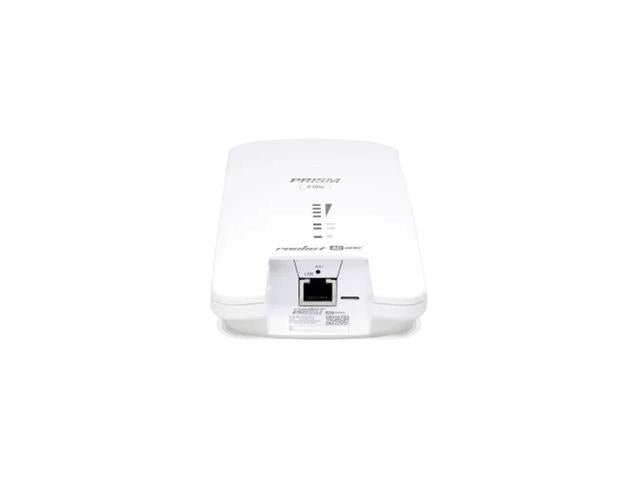

(1) GbE RJ45 port
|
|
RF connectors
|
(2) RP-SMA (Waterproof)
(1) GPS (Waterproof)
|
|
Power method
|
Passive PoE 2-pair (4, 5+; 7, 8 return)
|
|
Power supply
|
24V, 1A gigabit PoE adapter (Included)
|
|
Supported voltage range
|
18—27V DC
|
|
Max. power consumption
|
9.5W
|
|
LEDs
|
(4) Signal strength: software-adjustable to correspond to custom RSSI levels
GPS, LAN, power
|
|
Shock and vibrations
|
ETSI300-019-1.4
|
|
Ambient operating temperature
|
-40 to 80° C (-40 to 176° F)
|
|
Ambient operating humidity
|
5 to 95% noncondensing
|
|
Certifications
|
CE, FCC, IC, RoHS
|
|
NDAA Compliant
|
Yes
|
|
Software
|
|
|
Modes
|
Access Point, station
|
|
Channel sizes
PtP mode
PtMP mode
|
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
|
|
Services
|
Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing
|
|
Utilities
|
airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test
|
|
Distance adjustment
|
Dynamic Ack and Ackless mode
|
|
Power adjustment
|
Software adjustable UI or CLI
|
|
Security
|
WPA2 AES only
|
|
QoS
|
Supports packet level classification WMM and user customer level: High/Medium/Low
|
|
Statistical reporting
|
Up time, packet errors, data rates, wireless distance, Ethernet link rate
|
|
Ubiquiti specific features
|
30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode
|
|
Operating Frequency (MHz)
|
|
|
Worldwide
|
5150–5875 MHz
|
|
USA
U-NII-1:
U-NII-2A:
U-NII-2C:
U-NII-3
|
5150–5250 MHz
5250–5350 MHz
5470–5725 MHz
5725–5850 MHz
|
|
Management Radio (MHz)
|
|
|
Worldwide
|
2412–2472 MHz
|
|
USA
|
2412–2462 MHz
|
