Overview

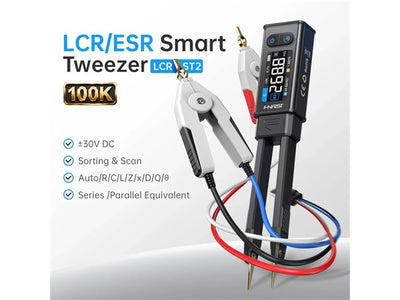

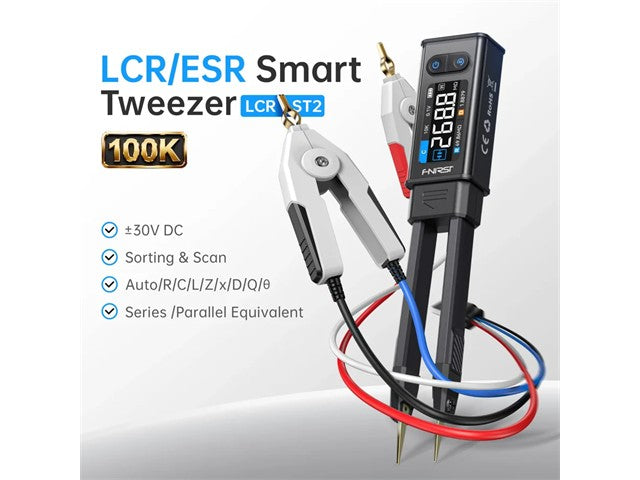

The FNIRSI LCR-ST2 is a compact dual-mode LCR meter that supports both tweezer and Kelvin-clip testing, ideal for components of any size. It measures R/C/L, diodes, and up to 30V with five test frequencies and a 1.47" HD display. Features include full-band sweep (100Hz–100kHz), intelligent sorting, dual-mode comparison, magnetic attachment, and a 300mAh battery—perfect for fast, precise testing in any environment.
Features
-
Wide Range Component Measurement
Accurately measures resistance (10 mΩ–10 MΩ), capacitance (1 pF–22 mF), inductance (1 μH–10 H), diode (≤0.7 V), and voltage (±30 V).
-
Comprehensive Electrical Parameters
Provides D/Q/Z/X/θ/ESR readings to fully characterize component behavior and performance.
-

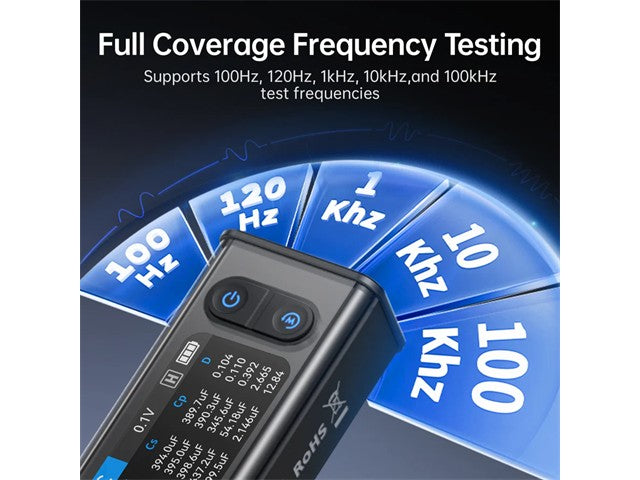

Five Selectable Test Frequencies
Offers professional testing at 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for different types of components and applications.
-
Four RMS Test Levels
Adjustable excitation levels (0.1V / 0.3V / 0.6V / 1.0V) enable optimized measurement stability across various component types.
-

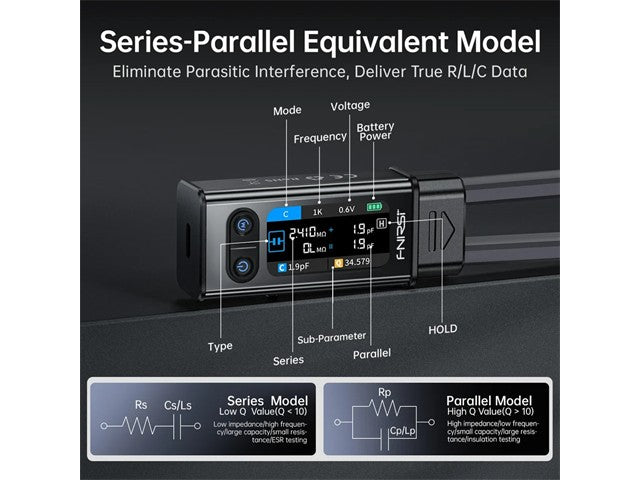

Dual Series/Parallel Equivalent Comparison
Simultaneously displays series and parallel equivalent values to minimize parasitic interference and enhance measurement accuracy.
-
Full-Band Sweep Mode (100Hz–100kHz)
Provides fast multi-frequency analysis with a single action, enabling detailed characterization of component frequency response.
-

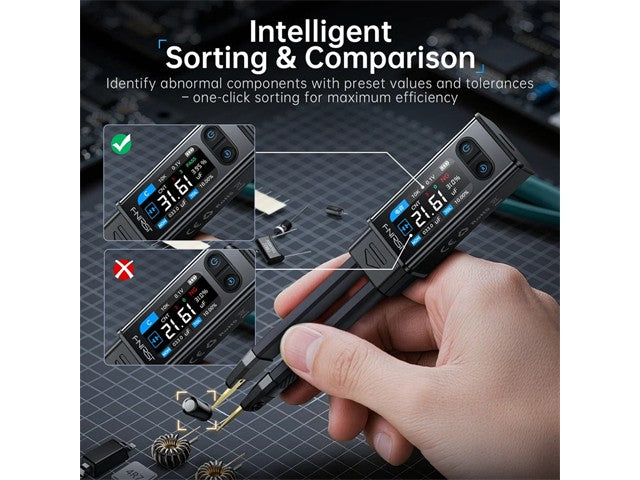

Intelligent Sorting with Tolerance Grading
Automatically evaluates components based on preset nominal values and tolerances for rapid OK/NG batch testing.
-

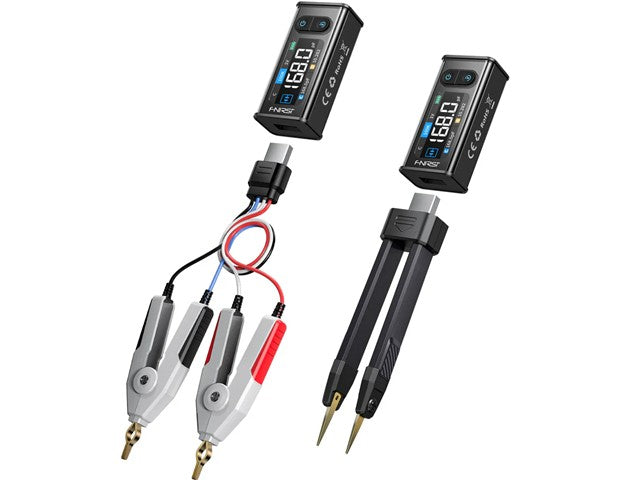

Dual-Form Testing: Tweezer Tips + Kelvin Clip
Straight and curved tweezer tips allow easy testing of small components, while the Kelvin clip provides precise four-wire measurement for larger or through-hole components.
-
Smart Recognition & Display Functions
Features automatic R/C/L component recognition, dual-parameter display, HOLD/Max/Min, and adjustable system settings.
-
Auto-Rotate Orientation
Hand-sensing screen rotation supports both left-handed and right-handed usage for effortless operation.
-
Portable Magnetic Design
Includes a magnetic attachment for easy storage and handling, ideal for fast access in field environments.
-
1.47" HD Color Display
Offers clear, high-contrast visualization of measurement data for efficient on-site and laboratory usage.
-
Long Battery Life & Type-C Charging
Powered by a 300mAh lithium battery with Type-C charging, delivering up to ~3 hours of continuous operation.
Specifications
|
Category
|
Specification
|
|
Model
|
LCR-ST2
|
|
Standby Time
|
≈3 H
|
|
Screen Display
|
1.47" HD Display
|
|
Dimensions
|
31 × 170.7 × 20.3 mm
|
|
Weight
|
≈60.8 g
|
|
Interface
|
Type-C
|
|
Operating Temperature
|
0℃ ~ 50℃ (Humidity ≤ 75%)
|
|
Storage Temperature
|
-20℃ ~ 60℃ (Humidity ≤ 75%)
|
|
Capacitance Range
|
1 pF ~ 22 mF
|
|
Inductance Range
|
1 µH ~ 10 H
|
|
Resistance Range
|
10 mΩ ~ 10 MΩ
|
|
Diode On-State Voltage
|
≤ 0.7 V
|
|
Voltage Measurement
|
±30 V
|
Capacitance Accuracy
|
Range
|
100 Hz / 20 Hz
|
1 kHz
|
10 kHz
|
100 kHz
|
|
1 mF ~ 22 mF
|
5% ± 3 digits
|
5% ± 3 digits
|
—
|
—
|
|
1 µF ~ 1 mF
|
2% ± 3 digits
|
2% ± 3 digits
|
2% ± 3 digits
|
5% ± 3 digits
|
|
1 nF ~ 1 µF
|
2% ± 3 digits
|
0.5% ± 3 digits
|
0.5% ± 3 digits
|
5% ± 3 digits
|
|
1 pF ~ 1 nF
|
—
|
2% ± 3 digits
|
2% ± 3 digits
|
5% ± 3 digits
|
Inductance Accuracy
|
Range
|
100 Hz / 20 Hz
|
1 kHz
|
10 kHz
|
100 kHz
|
|
1 H ~ 10 H
|
5% ± 3 digits
|
5% ± 3 digits
|
—
|
—
|
|
1 mH ~ 1 H
|
2% ± 3 digits
|
2% ± 3 digits
|
—
|
—
|
|
10 µH ~ 1 mH
|
2% ± 3 digits
|
0.5% ± 3 digits
|
0.5% ± 3 digits
|
5% ± 3 digits
|
|
1 µH ~ 10 µH
|
—
|
2% ± 3 digits
|
2% ± 3 digits
|
5% ± 3 digits
|
Resistance Accuracy
|
Range
|
100 Hz / 20 Hz
|
1 kHz
|
10 kHz
|
100 kHz
|
|
1 MΩ ~ 10 MΩ
|
5% ± 3 digits
|
5% ± 3 digits
|
—
|
—
|
|
1 kΩ ~ 1 MΩ
|
1% ± 3 digits
|
0.5% ± 3 digits
|
1% ± 3 digits
|
—
|
|
1 Ω ~ 1 kΩ
|
1% ± 3 digits
|
0.5% ± 3 digits
|
1% ± 3 digits
|
5% ± 3 digits
|
|
10 mΩ ~ 1 Ω
|
2% ± 3 digits
|
2% ± 3 digits
|
2% ± 3 digits
|
5% ± 3 digits
|

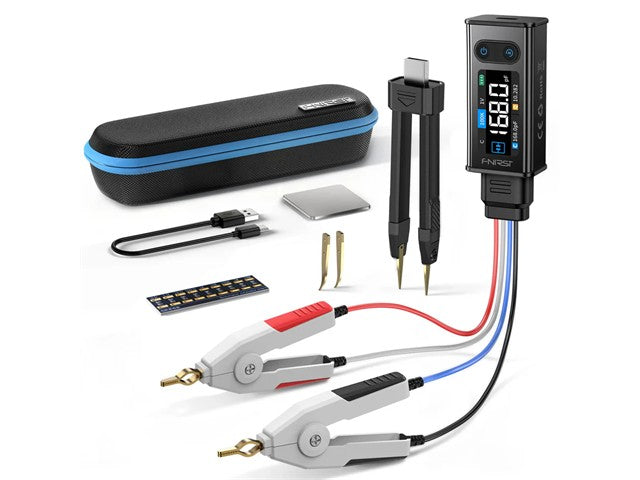

Package List:
- LCR-ST2 Tweezer
- Storage Bag
- Curved Tip
- Shorting Plate
- Kelvin Test Clip
- Data Cable
