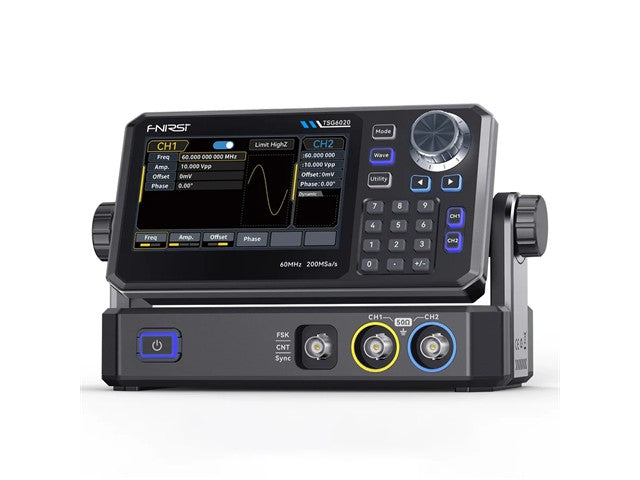

The TSG6020 are dual-channel function/arbitrary waveform generators featuring DDS technology, 200 MSa/s sampling rate, TSG6020 extends to 60 MHz—both providing flexible and accurate amplitude control over waveforms, duty cycle, and edge timing. Ideal for R&D, education, and automated testing.

• Dual-channel outputoffers amplitude ranges that are dependent on load and frequency, with specific specifications as follows:
  • 2 mVpp~20 Vpp (high impedance, ＜10 MHz)

  • 2 mVpp~10 Vpp (high impedance, ＞10 MHz)

  • 1 mVpp~10 Vpp (50 Ω, ＜10 MHz)

  • 1 mVpp~5 Vpp (50 Ω, ＞10 MHz)
  This design ensures compatibility with a wide range of complex signal generation scenarios.

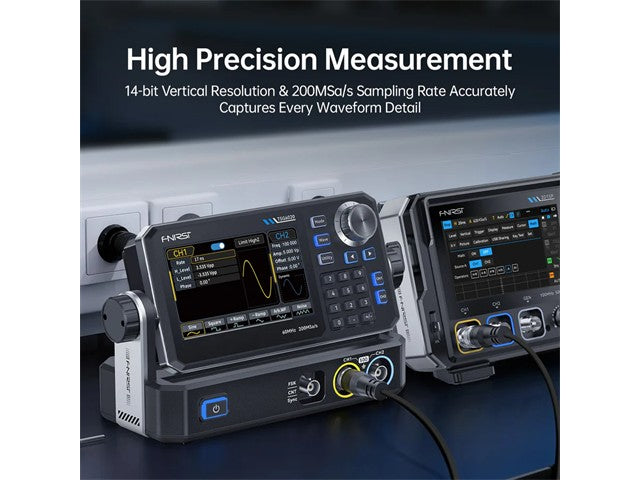

• 200 MSa/s sampling rate with 14-bit vertical resolution ensures high-fidelity waveform reproduction and minimal distortion.
• Generates standard waveforms (sine, square, ramp, pulse, noise, DC) and supports user-defined arbitrary waveforms.

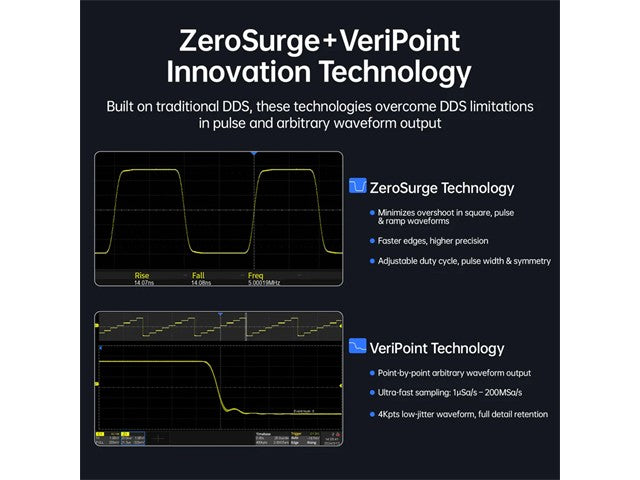

• ZeroSurge technology minimizes overshoot in square, pulse, and ramp waveforms, delivering ≤1% overshoot and ≤13.5 ns rise/fall times for sharper edges and higher precision.
• VeriPoint technology enables true point-by-point arbitrary waveform output with sampling rates from 1 µSa/s to 200 MSa/s, preserving full waveform detail with low jitter (<200 ps).

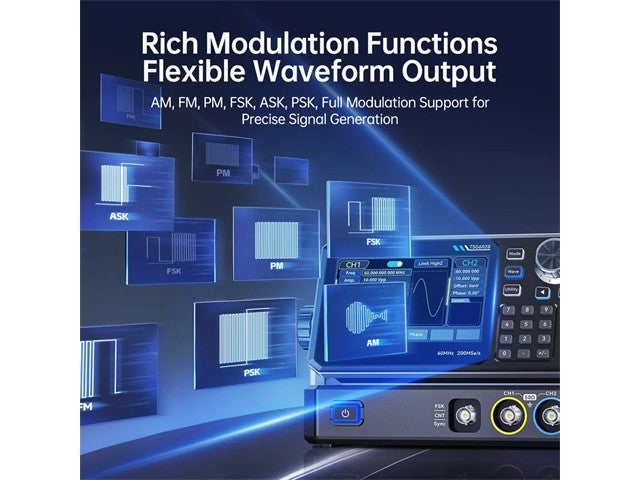

• Comprehensive modulation support: AM, FM, PM, FSK, ASK, and PSK, suitable for digital communication and RF testing.
• Frequency sweep function with linear/logarithmic modes and sweep time from 1 ms to 500 s ±0.1%, ideal for filter characterization and system response analysis.
• Built-in 7-digit frequency counter measures frequency, period, and duty cycle of TTL-level signals across 100 mHz to 100 MHz with ±51 ppm accuracy.
• High-precision output: 1 mVpp to 10 Vpp (into 50 Ω), phase noise ≤ -125 dBc/Hz @ 10 MHz (10 kHz offset), and harmonic distortion < -40 dBc @ 30–60 MHz.

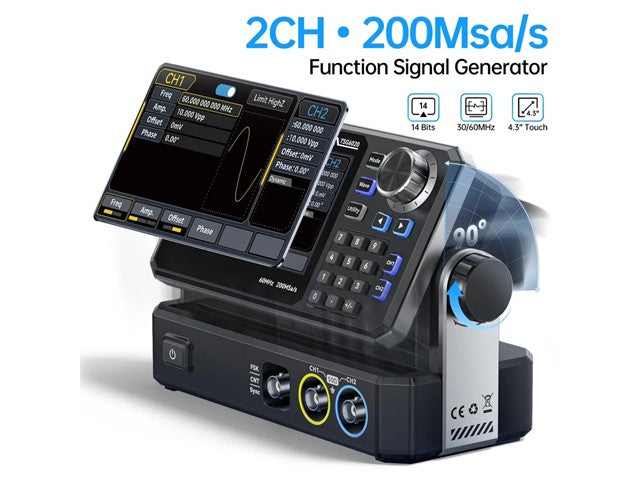

• 4.3" TFT-LCD touchscreen combined with physical buttons enables intuitive control and fast parameter adjustment in lab or field environments.
• Real-time waveform preview and status display on the screen for clear monitoring during setup and operation.
• Robust output protection includes channel isolation, grounding safety, and TTL-compatible sync/output, ensuring stable performance under demanding conditions.
• High-performance cooling system with aluminum heat sink and quiet fan maintains thermal stability during extended use.
• Non-volatile memory stores up to 24 custom arbitrary waveforms for instant recall without reconfiguration.
• Supports multiple operating modes: continuous, gated output, modulation, and sweep, offering maximum flexibility for automated test systems.

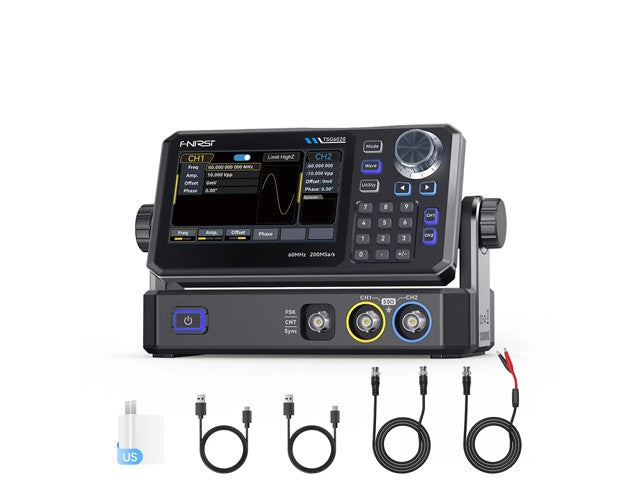

Package List:
