IL213AT

Name: IL213AT - Communica [Part No: IL213AT]
Brand: Communica
SKU: IL213AT
Price: 4.10 ZAR
Availability: InStock

SKU: IL213AT

BRAND: Communica

R 4.72_{(inc VAT)}
R 4.10_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

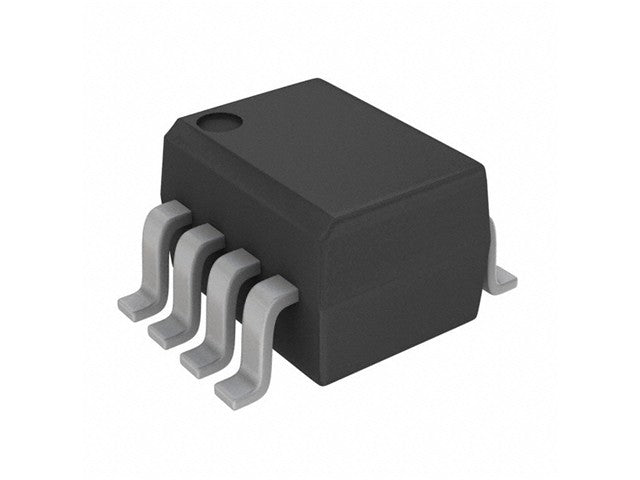

Opto-Isolator Transistor with Base Output 4000Vrms 1 Channel 8-SOIC

Opto-Isolator Transistor

Specifications

Number of Channels	1
Voltage - Isolation	4000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	30V
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Downloads

Datasheet - IL213AT

Additional Information

Device

Transistor

Enhance your electronic projects with the IL213AT Opto-Isolator Transistor. Featuring a robust 4000Vrms isolation voltage and a fast switching time of just 3µs, this 1-channel device ensures reliable performance. Ideal for DC applications, it offers excellent current transfer and operates efficiently in temperatures from -55°C to 100°C. Upgrade your circuit designs with the precision and durability of the IL213AT today!
