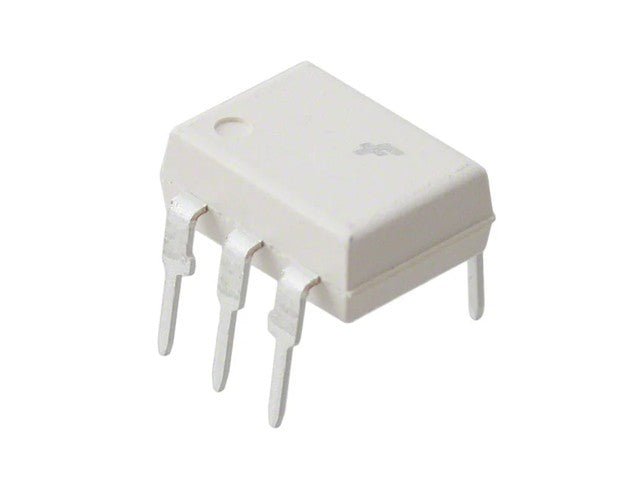

MOC8021

SKU: MOC8021

BRAND: Communica

In Stock
R 7.19_{(inc VAT)}
R 6.25_{(ex VAT)}

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

Opto-isolator Darlington Output 5300Vrms 1 Channel 6-DIP

1 Channel 6-DIP Darlington Opto-isolator

Specifications

Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	1000% @ 10mA
Turn On / Turn Off Time (Typ)	3.5µs, 95µs
Input Type	DC
Output Type	Darlington
Voltage - Output (Max)	50V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	2V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP

Downloads

Datasheet - MOC8021

Additional Information

Device	Optoisolator
Type	1 Channel \| 6-DIP \| Darlington
