• Nominal Voltage : 12V
• Rated Capacity (20hr Rate) : 3.2Ah
• Dimensions
• Length : 5.28 inches (134mm)
• Width : 2.64 inches (67mm)
• Height : 2.36 inches (60 mm)
• Total Height : 2.60 inches (66mm)
• Weight : Approx.2.58lbs (1.17kg)

• Capacity 77°F(25°C)
• 20hour rate (0.16 A) : 3.20Ah
• 10hour rate (0.29 A) : 2.94Ah
• 5hour rate (0.54 A) : 2.72Ah
• 1hour rate (2.08 A) : 2.08Ah
• Internal Resistance
• Full Charged, 77°F(25°C) : 55mΩ
• Affected By Temperature (10hr Rate)
• 104°F(40°C) : 102%
• 77°F(25°C) : 100%
• 32°F(0°C) : 85%
• 5°F(-15°C) : 65%
• Self-Discharge 77°F(25°C)
• Capacity after 3 month storage : 90%
• Capacity after 6 month storage : 80%
• Capacity after 9 month storag : 60%

Charge (Constant Voltage)

• Initial Charge Current “LESS” than 0.96A
• Cycle : 14.4-15.0V77°F(25°C)
• Stand By : 13.5-13.8V/77°F(25°C)

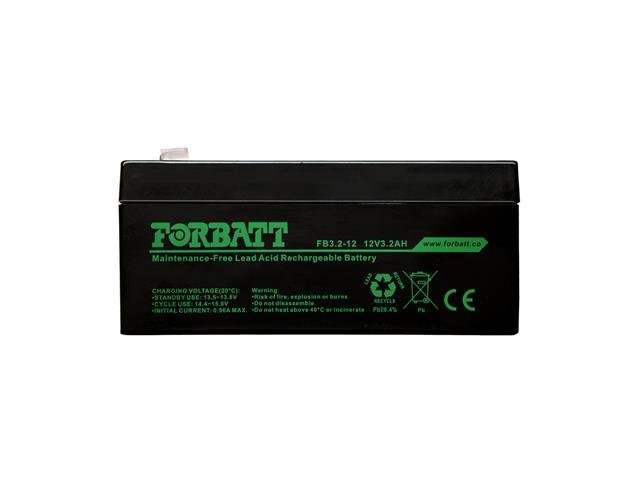

1. Data Sheet -BATT 12V3,2 FBT
