BATT 6V12 CSB

Name: BATT 6V12 CSB - Communica [Part No: BATT 6V12 CSB]
Brand: Csb
SKU: BATT 6V12 CSB
Price: 304.35 ZAR
Availability: InStock

SKU: BATT 6V12 CSB

BRAND: Csb

R 350.00_{(inc VAT)}
R 304.35_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Loadshedding, Power

Type: Batteries

Category: Loadshedding, Sealed Lead Acid Battery

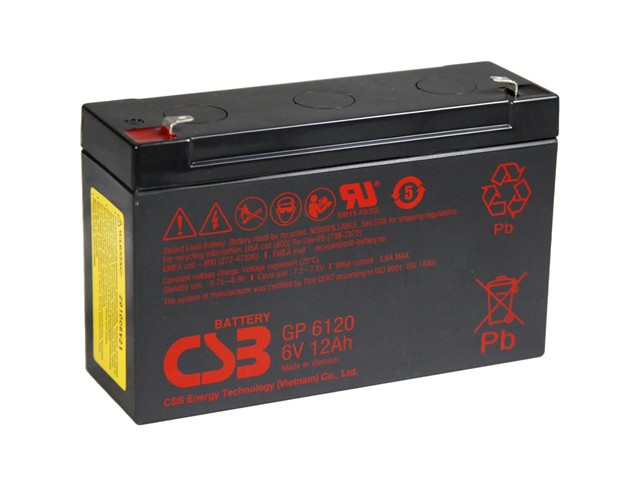

Rechargeable Battery 6V12AH (L=151 W=50 H=100mm) F2 Terminal 6.4mm 1.8kg

6V12AH Rechargeable Battery

Specifications

Cells Per Unit

6

Voltage Per Unit

12 V

Capacity

7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

Weight (kg)

Approx. 2.40kg. (5.29 lbs.)

Maximum Discharge current (A)

100A/130A (5sec.)

Internal Resistance Approx.

Approx. 23mΩ

Operating Temperature Range

Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)

Nominal Operating Temperature Range

25°C ± 3°C (77°F ± 5°F)

Float charging voltage

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Recommended Maximum Charging current limit

2.16A

Equalization and Cycle Service

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self Discharge

It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

Terminal

F1/F2-Faston Tab187/250

Container Material

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

Downloads

Datasheet - BATT 6V12 CSB

Additional Information

Device	Battery
Type	6V12AH \| Rechargeable
Rechargeable	True

Power your devices with the reliable BATT 6V12 CSB rechargeable battery. With a robust 12V capacity and excellent discharge rates, this lightweight battery is perfect for a variety of applications. Its durable construction ensures long-lasting performance, making it an ideal choice for both home and professional use.
