LI75-20B24R2S

Name: LI75-20B24R2S - Communica [Part No: LI75-20B24R2S]
Brand: Mornsun
SKU: LI75-20B24R2S
Price: 501.56 ZAR
Availability: InStock
Rating: 1.00 (1 reviews)

SKU: LI75-20B24R2S

BRAND: Mornsun

R 576.79_{(inc VAT)}
R 501.56_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

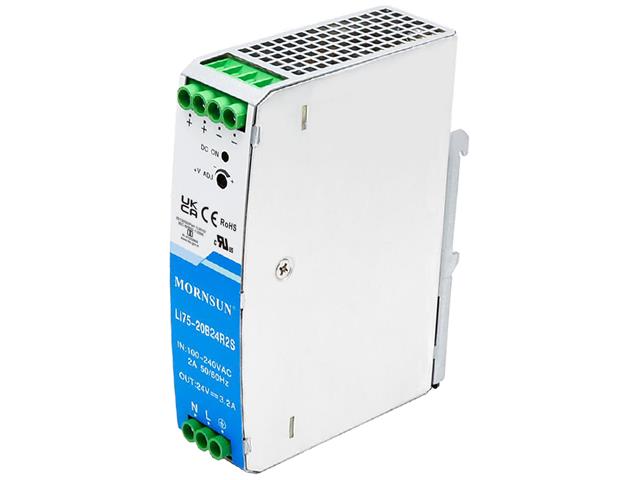

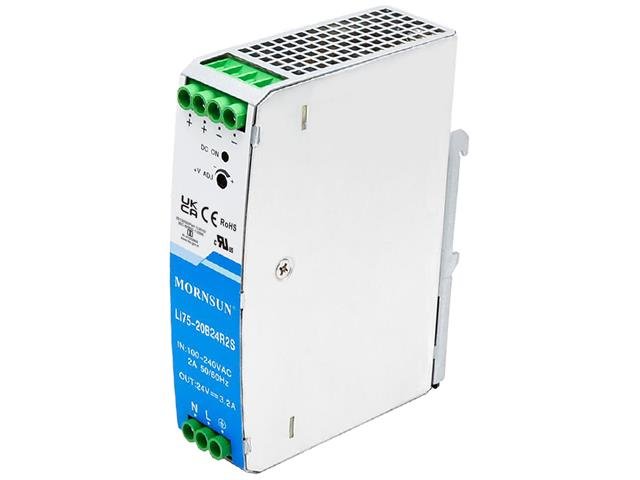

DIN Rail Metal Case Slim Profile Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 24VDC @ 3,2A. 4KVAC Isolation

Slim Profile Switch Mode Power Supply

Overview

LI75-20B24R2S is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international UL61010, EN62368 standards for EMC and safety

Feature

Universal 90 - 264VAC or 120 - 370VDCInput voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃to+70℃
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage, over-temperature protection
DIN rail TS-35/7.5 or 15 mountable
Suitable for small chassis and narrow space installation
Safety according to UL61010, BS EN62368

Specifications

Type	DIN Rail Single Output
Output Power	76.8W
Series	LI75-20B
Part Number	LI75-20B24R2S
Mount	DIN-Rail
IP Level	Non-Waterproof
Output Voltage	24V
Output Current	3.2A

Downloads

Datasheet - LI75-20B24R2S

Additional Information

Device	Power Supply
Type	Slim Profile \| Switch Mode

Discover the LI75-20B24R2S Slim Profile Switch Mode Power Supply, designed for reliable performance in industrial settings. With a compact DIN rail mount, it delivers 24VDC at 3.2A, ensuring energy efficiency and stability even in harsh environments. Enjoy peace of mind with built-in protections and compliance to international safety standards. Upgrade your equipment with this powerful, space-saving solution today!
