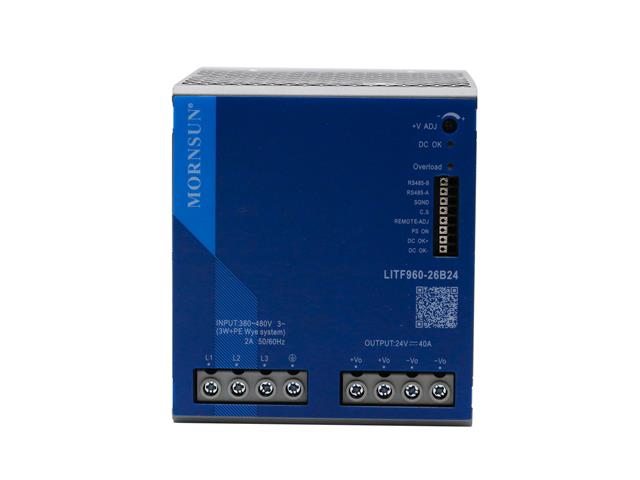

LITF960-26B24

Name: LITF960-26B24 - Communica [Part No: LITF960-26B24]
Brand: Mornsun
SKU: LITF960-26B24
Price: 5835 ZAR
Availability: OutOfStock

SKU: LITF960-26B24

BRAND: Mornsun

Sold Out
R 6,710.25_{(inc VAT)}
R 5,835.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

DIN Rail Metal Case Three Phase Power supply with Active PFC. input 320 ~ 600VAC/450- 850VDC. Output 48VDC @ 40A

DIN Rail Metal Case Three Phase Power supply

Specifications

Universal 3x320-600VAC or 450-800VDC Input voltage
Active PFC, PF up to 0.94
Operating ambient temperature range: -30℃ to +70℃, 60 ℃ @ 100% load without
Standard DIN-Rail mounting
High efficiency, high reliability
LED indicator for output status
150% peak power lasts for 4s
Output short circuit, over-current, over-voltage, over-temperature protection
Supporting parallel (2+1 current sharing) and series
Fault alarm function, DC OK, constant current
Double-sided conformal coating, salt-spray proof
485 Communication, remote shutdown (PS ON)
Operating altitude up to 5000m
OVC Ⅲ (Safety according to EN61010)
3 years warranty
Safety according to ANSI/ISA 71.04-2013 G3
Safety according to IEC/UL/EN62368, IEC/EN61000, UL/EN61010, CISPR32/EN55032, UL508

Downloads

Datasheet - LITF960-26B24

Additional Information

Device	Power supply
Type	DIN Rail \| Metal Case \| Three Phase

Elevate your power solutions with the LITF960-26B24 DIN Rail Metal Case Three Phase Power Supply. Designed for high efficiency and reliability, it handles input voltages from 320 to 600VAC, ensuring stable 48VDC output at 40A. With robust protection features and a wide operating temperature range, this power supply is perfect for demanding environments. Enjoy peace of mind with a 3-year warranty and advanced safety certifications.
