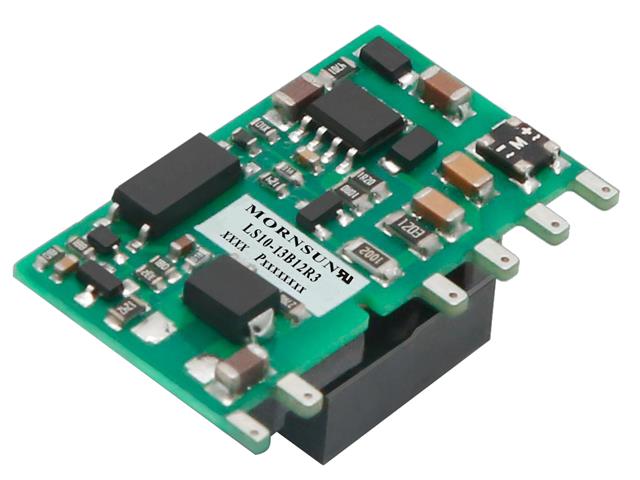

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 3,3VDC @ 2A
Open Frame Miniature Vertical PCB Switch Mode Power Supply
Overview
LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range acceptingeitherAC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitablefor industrial
control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t havehighrequirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this data sheet
Feature
- Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltagerange
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃to+85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- No-load power consumption as low as 0.1W
- Output short circuit, over-current, over-voltage protection
- Designed to meet IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
Downloads
Additional Information
| Device |
AC/DC Converter |
| Type |
Open Frame | Miniature Vertical | PCB | Switch Mode |
| Size |
32.00 x 17.20 x 15.05 mm |
Discover the LS10-13B03R3 Miniature Vertical PCB Switch Mode Power Supply, designed for efficiency and reliability. With a wide input range of 85-305VAC and 100-430VDC, it delivers 3.3VDC at 2A, perfect for industrial control and smart home applications. Its compact size and low no-load consumption make it an eco-friendly choice, ensuring robust performance in demanding environments.
