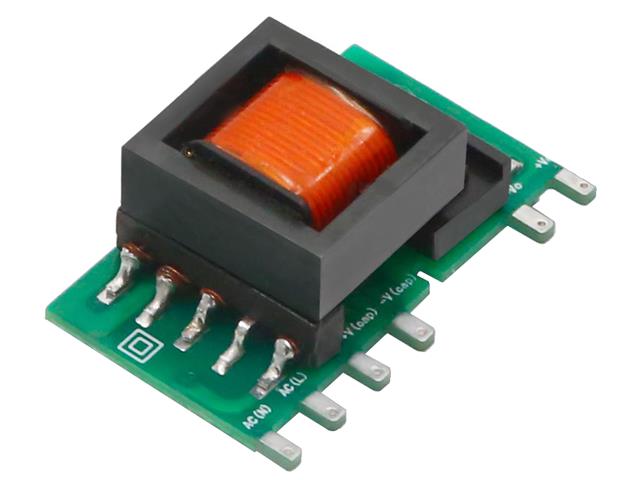

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 5VDC @ 2A
Open Frame Miniature Vertical PCB Switch Mode Power Supply
Overview
LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range acceptingeitherAC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitablefor industrial
control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t havehighrequirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this data sheet
Feature
- Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltagerange
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃to+85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- No-load power consumption as low as 0.1W
- Output short circuit, over-current, over-voltage protection
- Designed to meet IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
Downloads
Additional Information
| Device |
AC/DC Converter |
| Type |
Open Frame | Miniature Vertical | PCB | Switch Mode |
| Size |
32.00 x 17.20 x 15.05 mm |
Discover the LS10-13B05R3, a highly efficient open frame miniature vertical PCB switch mode power supply. With a versatile input range of 85-305 VAC and 100-430 VDC, it offers reliable performance for industrial control and smart home applications. Enjoy low power consumption and built-in protection features, ensuring safety and efficiency in a compact design. Upgrade your power solutions with this eco-friendly, high-density converter today!
