Victron Battery Monitor 6.5~95VDC, Front Bezel:69x69mm , M10 Shunt 500A 50mV, VE.Direct Communication Port, Battery Capacity:20~ 9999Ah
High Precision Battery Monitor
Overview

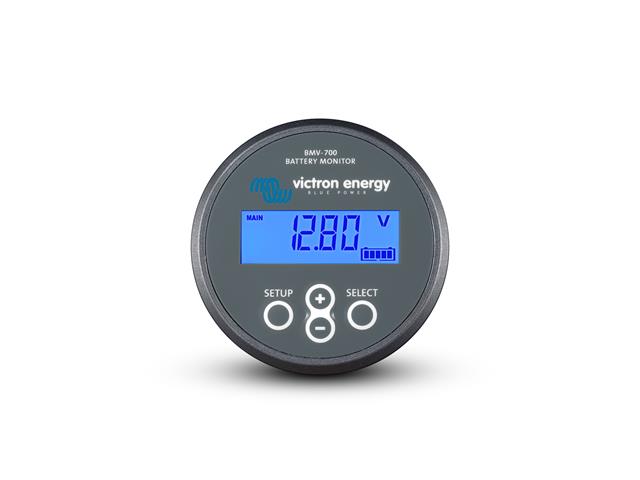

The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.Includes : 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
Features
Battery voltage, current, power, ampere-hours consumed and state of charge
Remaining time at the current rate of discharge
Programmable visual and audible alarm
Programmable relay, to turn off non critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10,000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 6.5 – 95V
High current measurement resolution: 10 mA (0.01A)
Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V
Specifications
Supply voltage range : 6.5 - 95 VDC
Current draw, back light off : < 4mA
Battery capacity (Ah) : 1 - 9999 Ah
Operating temperature range : -40 +50°C (-40 - 120°F)
Measures voltage of second battery, or temperature, or midpoint : No
Temperature measurement range : -20 +50°C
VE.Direct communication port : Yes
Relay : 60V / 1A normally open (function can be inverted)
Resolution & Accuracy (with a 500 A shunt)
Current : ± 0.01A
Voltage : ± 0.01V
Amp hours : ± 0.1 Ah
State of charge (0 – 100%) : ± 0.1%
Time to go : ± 1 min
Temperature (0 - 50°C or 30 - 120°F) : n. a. ± 1°C/°F n. a.
Accuracy of current measurement : ± 0.4%
Accuracy of voltage measurement : ± 0.3%
Installation & Dimensions
Installation Flush mount
Front 63mm diameter
Front bezel 69 x 69 mm (2.7 x 2.7 inch)
Shunt connection bolts M10 (0.3937 inch)
Body diameter and depth 52 mm (2.0 inch) and 31 mm (1.2 inch)
Protection category IP55 (not intended for outdoor use)
Monitor your battery's health with the VICT BMV-700, a high-precision battery monitor that tracks voltage, current, and ampere hours consumed. With its user-friendly design and programmable alarms, you'll ensure optimal performance and longevity for batteries of 20-9999Ah. Enjoy peace of mind with real-time data and reliable communication, making it perfect for both casual users and professionals alike.
