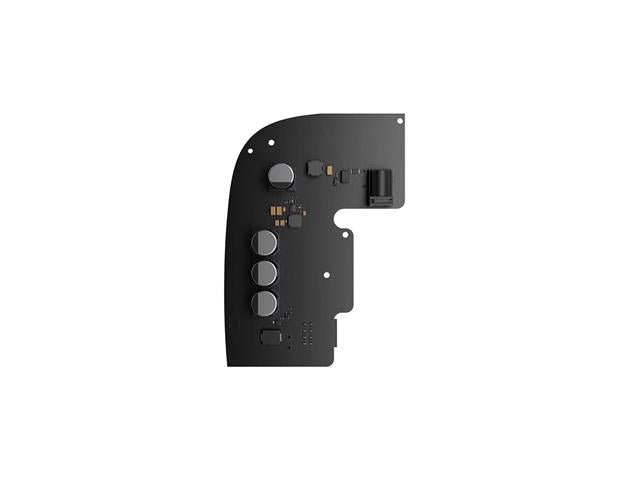

AJAX PSU 12V-24V HUB2-HUB2+/REX2

Name: AJAX PSU 12V-24V HUB2-HUB2+/REX2 - Communica [Part No: AJAX PSU 12V-24V HUB2-HUB2+/REX2]
Brand: Ajax
SKU: AJAX PSU 12V-24V HUB2-HUB2+/REX2
Price: 458 ZAR
Availability: InStock

SKU: AJAX PSU 12V-24V HUB2-HUB2+/REX2

BRAND: Ajax

In Stock
R 526.70_{(inc VAT)}
R 458.00_{(ex VAT)}

Collections: AJAX, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Alarm Power Supply

Ajax Power Supply 12-24V 1A , I/P: 8-32VDC, O/P: 4.65 V ± 5%, Switch On Voltage : 8VDC ± 2.5%, Switch-Off Voltage:7-7.5VDC Depending On Load, {Compatible with: HUB2 - HUB2 PLUS CONTROL PANELS & REX2 SINGNAL RANGE EXTENDER}, 98x70x17mm, 26g

Power Supply 12-24V 1A

Overview

An alternative power supply unit connecting Ajax control panels and range extenders to low-voltage sources. Replaces the built-in 110/230 V~ power supply unit.

Specifications

Compatibility

Hubs
Hub 2 (2G)
Hub 2 (4G)

Radio signal range extenders
- ReX 2

Input

Voltage : 8–20 V⎓
Current : up to 1 А
Turn-on voltage : 8 V⎓ ± 2.5%
Turn-off voltage : 6.9–7.5 V⎓
Depends on the load

Output

Voltage : 4.8 V⎓ ± 3%
Current : up to 1.5 A

Installation

Installation method : into the hub or range extender enclosure
Operating temperature range : from -10°C to +40°C
Operating humidity : up to 75%

Connection to the power supply network

Connector slot : 6.5 × 2 mm
Power jack (female)
Connector : 5.5 × 2.1 mm
Power jack (male)

Board

Dimensions : 98 × 70 × 17 mm
Weight : 26 g

Complete set

12V PSU for Hub 2/ReX 2
Terminal adapter
Quick start guide

Downloads

Datasheet - AJAX PSU 12V-24V HUB2-HUB2+/REX2

Additional Information

Device

Power Supply
