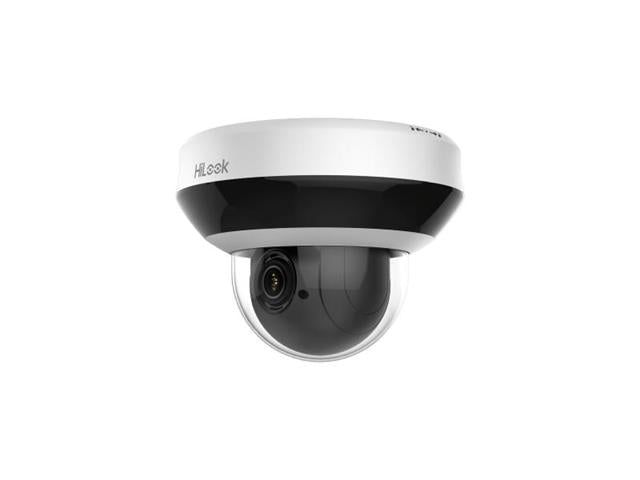

• Two-inch 2 MP camera with pan, tilt and zoom (4x) ability
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Great night-time performance with up to 20 m enhanced IR
• Water and dust resistant (IP66), and vandal proof (IK10)
• Built-in microphone for real-time audio security (optional)

Lens

• FOV : Horizontal field of view: 109° to 34° (Wide-Tele),Vertical field of view: 57° to 19° (Wide-Tele),Diagonal field of view: 135° to 39° (Wide-Tele)
• Focal Length : 2.8 mm to 12 mm, 4× optical zoom
• Zoom Speed : Approx. 2 s (optical lens, wide-tele)
• Working Distance : 10 mm to 1500 mm (wide-tele)
• Aperture Range : F1.6 to F2.7

Smart Features

• Basic Event Detection : Motion Detection, Video Tampering Detection, Exception
• Smart Detection : Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart Record : ANR (Automatic Network Replenishment), Dual-VCA
• ROI : Main stream, sub-stream, and third stream respectively support two fixed areas.

Network

• Security Measures : User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Network Storage : Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• Protocols :IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• API : Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
• Simultaneous Live View : Up to 20 channels
• User/Host : Up to 32 users,3 levels: Administrator, Operator and User
• Client : iVMS-4200, HikCentral, HiLookVision
• Web Browser : IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51


• Image Enhancement : 3D DNR, BLC, HLC, EIS, Regional Exposure, Regional Focus
• Sub-Stream : 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Max. Resolution : 1920 × 1080
• Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Third Stream
  • 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),
  • 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Interface

• Audio Input : 1-ch audio input (line in)
• Audio Output : 1-ch audio output (line out)
• Network Interface : 1 RJ45 10 M/100 M Ethernet, PoE
• Built-in Microphone : 1 built-in microphone, picking up sounds in the radius up to 5 meters

Camera Module

• Image Sensor : 1/3" progressive scan CMOS
• Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
• White Balance : Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Gain : Auto/Manual
• Shutter Time : 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & Night : IR Cut Filter
• Digital Zoom : 16×
• Privacy Mask : 24 programmable privacy masks
• Focus Mode : Auto/Semi-automatic/Manual
• WDR : 120 dB WDR

General

• Material : Aluminum alloy, PC, PC+ABS
• Dimensions : Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
• Weight : Approx. 0.53 kg (1.17 lb)
• Protection Level : IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power
  • 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR)
  • PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
• Working Temperature : -20°C to 60°C (-4°F to 140°F)
• Working Humidity : ≤ 90%

Supplement Light

• IR Distance : 20 m
• Smart IR : Support

PTZ

• Movement Range (Pan) : 0° to 330°
• Pan Speed : Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
• Movement Range (Tilt) : From 0° to 90°
• Tilt Speed : Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
• Proportional Zoom : Support
• Presets : 300
• Power-off Memory : Support

Compression Standard

• H.264+ : Support
• H.265+ : Support
• H.264 Type : Baseline Profile/Main Profile/High Profile
• Video Compression : Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 Type : Main Profile
• Video Bitrate : 32 Kbps to 16384 Kbps
• Audio Compression : G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
• SVC : Support
