CEN SD05 SMART (T10) SECT KIT

Name: CEN SD05 SMART (T10) SECT KIT - Communica [Part No: CEN SD05 SMART (T10) SECT KIT]
Brand: Centurion
SKU: CEN SD05 SMART (T10) SECT KIT
Price: 2913.05 ZAR
Availability: InStock

SKU: CEN SD05 SMART (T10) SECT KIT

BRAND: Centurion

R 3,350.01_{(inc VAT)}
R 2,913.05_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: New Arrivals, Security, Access Control & Surveillance, Weight 10+

Type: Access Automation

Category: Garage Door Motors Accessories, New

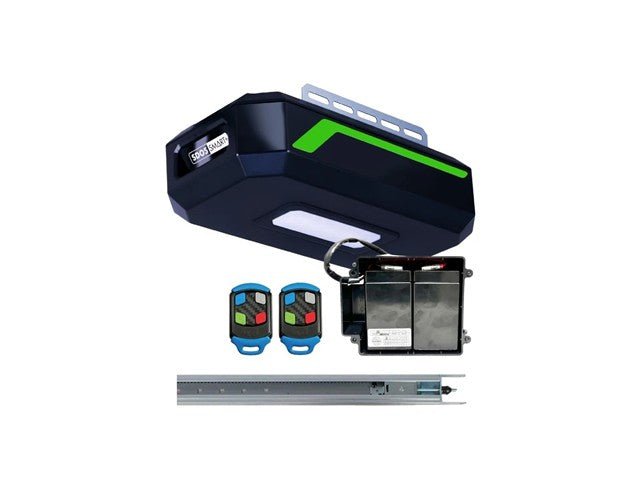

Centurion SD05 Smart T10 GDO AC Driven Sectional Kit - Includes: 2x4-Button Nova Remotes - 1xSingle Piece Track Sectional Belt Drive 3196mm (CEN SD04TRK006) - 1xCEN SD05BATKIT01 (SD05 SMART BATTERY BACK UP KIT 2x2.9AH))

Smart T10 GDO AC Driven Sectional Kit

Specifications

Input voltage	220V – 240V AC @ 50/60Hz
Motor voltage	24V DC
Motor power supply – rated	100W DC
Motor supply	Mains driven, 150 VA thermally fused toroidal transformer
Maximum door width	6.5m
Maximum door area	15m²
Max holding capacity	1200N
Maximum push/pull force	50kgf
Battery backup	Optional 2.9Ah battery backup
Charging rate	870mA charging rate with built-in battery saving and testing functionality
Operations in standby mode	Up to 70 depending on door size, weight, height, duration of power failure, and battery condition
Operator travel speed	9m/min
Wireless communication	BLE and Wi-Fi (2.4GHz)
Door travel adjustment	Physical end-stops (automatic limit set)
Safety obstruction force system	Built-in Hall Effect and current-sensing – adjustable in MyCentsys Pro
Light	Integrated LED courtesy light
Autoclose	Adjustable in MyCentsys Pro
Infrared safety beams	Compatible with wired or wireless (optional but recommended) – configured in MyCentsys Pro
Radio receiver	Code-hopping 433MHz
Receiver code storage capacity	30 × 4-button NOVA transmitters
Degree of protection	IPX0 (for interior use only)

Downloads

Additional Information

Device

Sectional Kit

Upgrade your garage with the CEN SD05 SMART (T10) Section Kit, featuring advanced wireless communication and a reliable battery backup. Enjoy seamless operation with 2x4-Button Nova Remotes and a powerful 24V DC motor, ensuring your door opens smoothly and securely. With adjustable safety features and integrated LED lighting, this kit offers convenience and peace of mind for any homeowner.
