CEN SD05 SMART (T12) SECT KIT

Name: CEN SD05 SMART (T12) SECT KIT - Communica [Part No: CEN SD05 SMART (T12) SECT KIT]
Brand: Centurion
SKU: CEN SD05 SMART (T12) SECT KIT
Price: 3200 ZAR
Availability: InStock

SKU: CEN SD05 SMART (T12) SECT KIT

BRAND: Centurion

R 3,680.00_{(inc VAT)}
R 3,200.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: New Arrivals, Security, Access Control & Surveillance, Weight 10+

Type: Access Automation

Category: Garage Door Motors Accessories, New

CENTURION SD05 Smart T12 GDO AC Driven Sectional Kit - Includes:2x4-Button Nova Remotes - 1xSingle Piece Track Sectional Belt Drive 3196mm (CEN SD04TRK006) - 1xCEN SD05BATKIT01 (SD05 SMART BATTERY BACK UP KIT 2x2.9AH) - 1xWall Pendant (CEN 1302PEND02)

SD05 Smart T12 GDO AC Driven Sectional Kit

Overview

The SDO5 SMRT+ brings SMRT + remote access to your garage door

The SDO5 SMRT+ brings SMRT + remote access to your garage door motor, built for garage doors where reliable daily access and SMRTer control matter. Control your garage door from anywhere in the world.

The SDO5 SMRT+ T12 is ideal for:

Larger and heavier garage doors
Residential installations requiring high-power automation
Projects demanding extra control and functionality thanks to an included Wireless Wall Pendant
Tip-up and sectional garage door configurations

Features

Model options: T10 and T12 variants (positioned for different domestic door requirements)
Drive system: Belt drive for quiet garage operation
Safety: Built-in collision sensing with auto-reverse; adjustable sensitivity
24V drive system: mains powered, with T10 suited to standard home garage doors, and T12 delivering extra drive power for larger setups
The backup Battery fits in the motor housing.
Connectivity: BLE and Wi-Fi
Accessories integration: Two configurable input/output channels and one input
Receiver capacity: 30 x 4-Button Transmitters

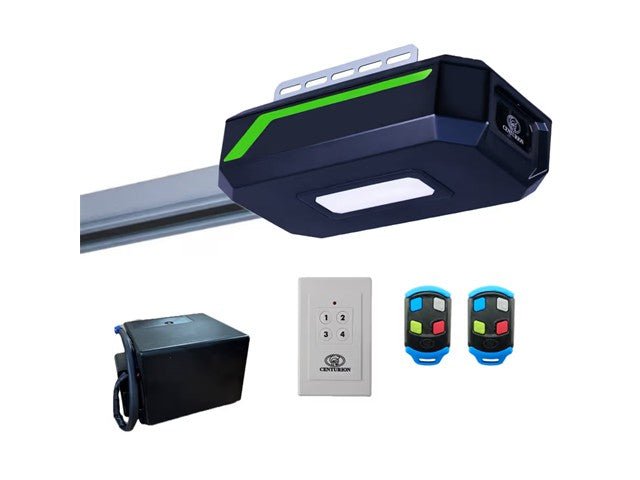

Kit Includes:

2x 4-Button Nova Remotes
1x Single Piece Track Sectional Belt Drive 3196mm (CEN SD04TRK006)
1x CEN SD05BATKIT01 (SD05 SMART BATTERY BACK UP KIT 2x2.9AH)
1x Wall Pendant (CEN 1302PEND02

Specifications

Input voltage	220V – 240V AC @ 50/60Hz
Motor voltage	24V DC
Motor power supply – rated	100W DC
Motor supply	Mains driven, 150 VA thermally fused toroidal transformer
Maximum door width	6.5m
Maximum door area	15m²
Max holding capacity	1200N
Maximum push/pull force	50kgf
Battery backup	Optional 2.9Ah battery backup
Charging rate	870mA charging rate with built-in battery saving and testing functionality
Operations in standby mode	Up to 70 depending on door size, weight, height, duration of power failure, and battery condition
Operator travel speed	9m/min
Wireless communication	BLE and Wi-Fi (2.4GHz)
Door travel adjustment	Physical end-stops (automatic limit set)
Safety obstruction force system	Built-in Hall Effect and current-sensing – adjustable in MyCentsys Pro
Light	Integrated LED courtesy light
Autoclose	Adjustable in MyCentsys Pro
Infrared safety beams	Compatible with wired or wireless (optional but recommended) – configured in MyCentsys Pro
Radio receiver	Code-hopping 433MHz
Receiver code storage capacity	30 × 4-button NOVA transmitters
Degree of protection	IPX0 (for interior use only)

Downloads

Additional Information

Device

Sectional Kit

Experience seamless control with the CEN SD05 SMART (T12) Sectional Kit. This advanced garage door opener features remote access, a powerful belt drive for quiet operation, and a battery backup for reliable performance. Ideal for larger doors, it ensures safety with collision sensing and offers easy installation with included remotes and a wall pendant. Elevate your garage access today!
