Hikvision 3K ColorVu Dual-Lens Bullet Camera, 2.8mm Lens, 40m IR, 3K CMOS, 3D DNR, Horizontal:FOV:180°, Vertical FOV:75°, STD/HIGH-SAT/Highlight, Built-in Microphone, WDR, BLC, HLC, Global, 24/7 Color Imaging with F1.0 Aperture, 12VDC, IP67

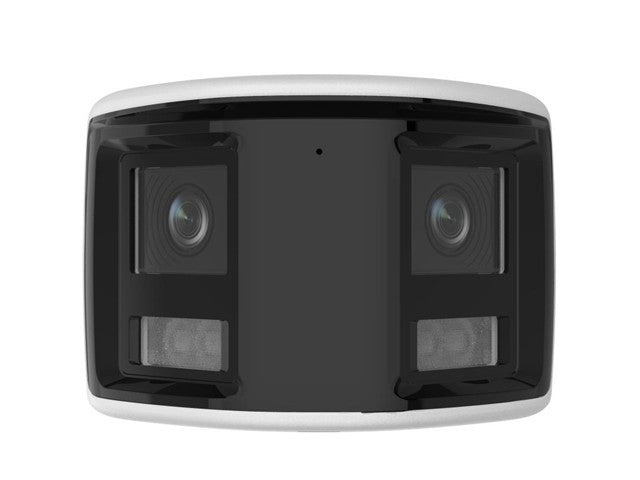

3K ColorVu Dual-Lens Bullet Camera
Feature(s)
- Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
- High quality imaging with 3K, 3328 × 1504 resolution
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light, optimize your security with flexible lighting options
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Up to 40 m white light and 40 m IR distance for bright night imaging
- Built-in mic, high quality audio with audio over coaxial cable
- Water and dust resistant (IP67)
Recommended DVR's :
- HKV IDS-7204HQHI-M1/XT
- HKV IDS-7208HQHI-M1/XT
- HKV IDS-7232HQHI-M2/XT
Specifications
Camera
-
Max. Resolution3328 (H) × 1504 (V)
-
Shutter Time1/20 s to 1/50,000 s
-
Image Sensor3K CMOS
-
Slow ShutterMax. 16 times
-
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
-
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Lens
-
Lens Type : 2.8 mm fixed focal lens
-
Focal Length & FOV : 2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
-
Lens Mount : M12
Illuminator
-
Supplement Light Range : IR: Up to 40 m,White Light: Up to 40 m
-
Smart Supplement Light : Yes
-
Frame Rate : 3K @20 dual
-
Privacy Mask : 4 programmable privacy masks
-
Wide Dynamic Range (WDR) : ≥130 dB
-
Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
-
Day/Night Mode : Auto
-
White Balance : Auto/Manual
-
Image Enhancement : WDR;BLC;HLC;Global
-
Noise Reduction : 3D DNR
-
Image Settings : Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC
Interface
-
Video Output : 1 HD analog output
-
Built-in Microphone : Yes
Event
-
Motion Detection : 4 programmable motion areas
General
-
Power : 12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
-
Language : English
-
Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
-
Material : Front cover: Metal, Main body: Plastic
-
Communication : HIKVISION-C
-
Dimension : 234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")
- Approx. 630 g (1.39 lb.)
Downloads
Additional Information
| Device |
Camera |
| Type |
3K | ColorVu | Dual-Lens | Bullet |
Upgrade your security with the HKV DS-2CE12KF3TP-DLS180 Dual-Lens Bullet Camera. Featuring stunning 3K resolution and 24/7 color imaging, this camera ensures clear visuals day and night. Its 180-degree field of view and advanced WDR technology provide exceptional clarity even in challenging lighting. With built-in audio and robust IP67 weather resistance, it's the ultimate choice for reliable surveillance.
