IMOU WIFI 8CH NVR, Max Decoding:1CH@6MP/2CH@4MP/4CH@1080P/8CH@720P, H.265+/H265/H.264+/H.264, UP TO 8TB HDD, 2xUSB Ports, VGA/HDMI, 1xRCA IN/1xRCA OUT, 1xNetwork Port, PSU:12VDC 1.5A, Wi-Fi: IEEE802.11b/g/n, Dual Antenna 2×2 MIMO

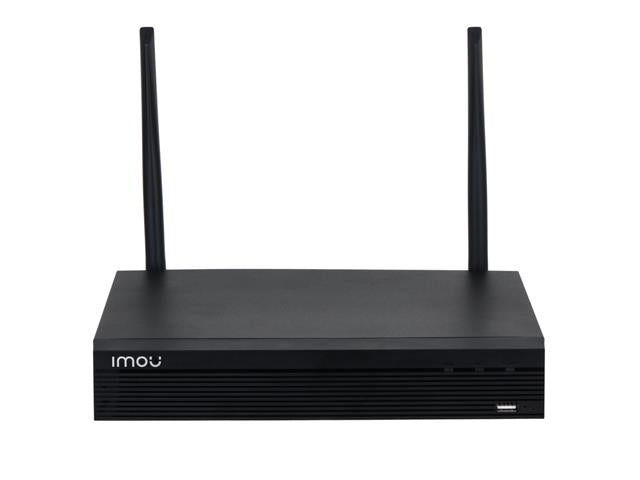

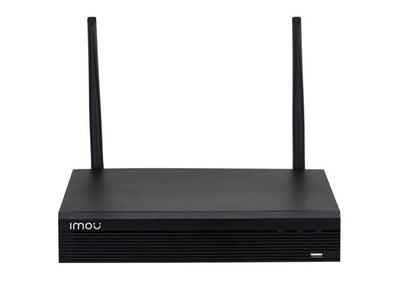

4/8-Channel Wi-Fi NVR
Overview
The Wireless Recorder is used to record videos and secure your home or business. Without
the limitation of the network cable, cameras connect to the recorder via Wi-Fi, and could
be placed freely in any corner.
Specifications
System
- IP Camera Input: 4/8 Channels
- Wired Max. Input: 40Mbps
- Wireless Max .Input: 16Mbps
- Operation Display: WEB/GUI/Imou APP
Video
- Video In: 4/8 Channels
- Video Out: 1 HDMI/1 VGA
Network
- ONVIF Profiles T/S/G, CGI, SDK
- imou App: iOS, Android
- Wi-Fi: IEEE802.11b/g/n, 100m Open Field
- Internal Dual-antenna, 2×2 MIMO

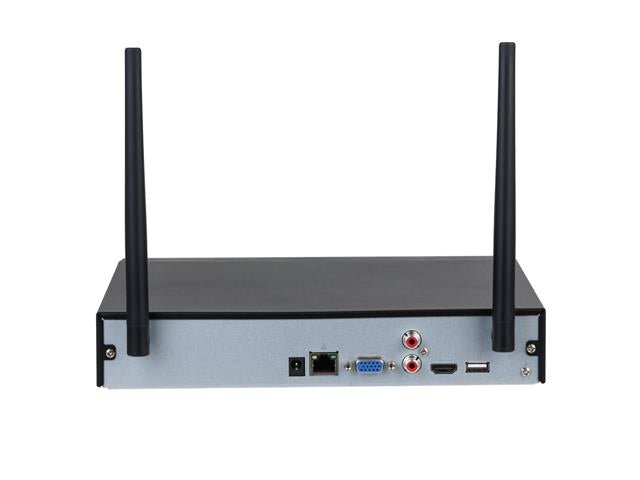

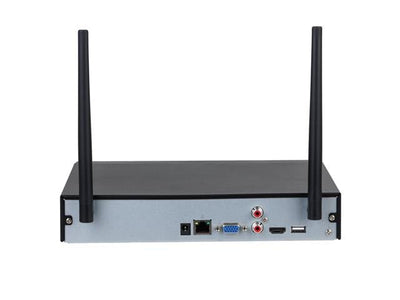

Auxiliary Interface
- 2 x USB Ports
- 1 x SATA Port
- 1 x Network Port
- 1 x RCA In
- 1 x RCA Out
- 1 x HDMI Port
- 1 x VGA Port
- 1 x Power Port
Recoding & Decoding
- Resolution: 1080P/720P
- Max Decoding: 1ch@6MP/2ch@4MP/4ch@1080P/8ch@720P
- Compression: H.265+/H265/H.264+/H.264
- Audio Compression: G.711A/G.711U/PCM/G726
Function
- Recoder Mode: Manual/Alarm/Motion detection/Schedule
- Backup Mode: USB Device
- Playback: 1/4
- Storage: Up to 8TB HDD/Cloud Storage
- Multi-screen Display:
General
- Power Supply: DC12V 1.5A
- Power Consumption: ≤10W(without HDD)
- Operationg Conditions: -10°C~+45°C(+14°F~+104°F) 10c/o~90c/oRH
- Dimensions(W×L×H): 260.3mm×247.3mm×44.7mm
(10.25" ×9.74" ×1.76" )
- Net Weight: 0.824kg(1.82lb)
- Certification: CE/FCC
What’s in the box
- 1 x Wireless Recorder
- 1 x Quick Start Guide
- 1 x Power Adapter
- 1 x Network Cable
- 1 x Screw Package
- 1 x Mouse
Downloads
Additional Information
| Device |
NVR |
| Type |
4/8-Channel | Wi-Fi |
Secure your home or business effortlessly with the IMOU NVR1108HS-W-S2, an advanced 8-channel Wi-Fi NVR. Enjoy seamless video recording in stunning clarity up to 6MP, with flexible placement thanks to wireless connectivity. With up to 8TB storage and easy access via the Imou app, this reliable recorder offers peace of mind and convenience in one powerful device.
