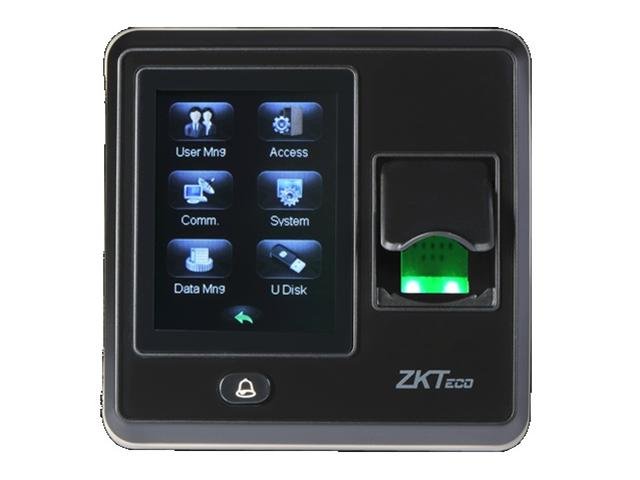

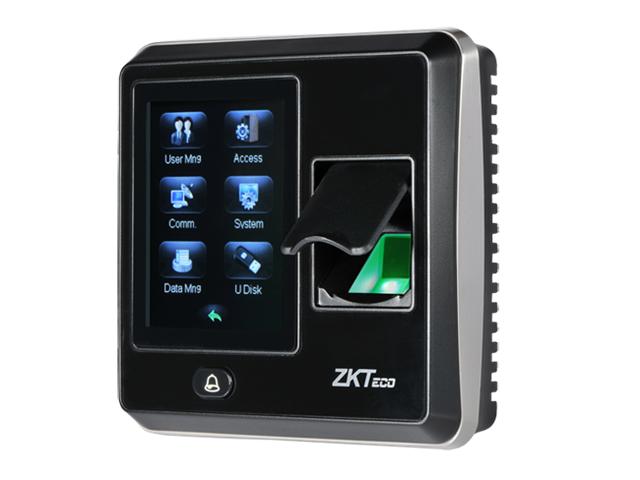

ZK Teco SF300 IP Based Fingerprint Reader, Which Operates in both Network Mode and Standalone Mode Used for access Control/time & Attendance Features
IP Based Fingerprint Reader
Features
- 2.8-inch touch screen, color display with graphical UI for easy operation
- Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
- Prompt audio acceptance or rejection signals for valid or invalid fingers
- Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
- TCP/IP or RS485 communication for various networking environments
- Supports USB flash drive for offline data management
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Up to 15 multi-verification methods to enhance security level
- Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
- Duress Alarm offers effective protection against duress by threats
- Tamper proof switch and multiple alarm outputs
- Multi-languages customizable
Specifications
- Model : SF300
- LCD 2.8 : inch resistive touch screen
- Fingerprint Sensor : ZK Optical Sensor (500DPI)
- Algorithm Version : ZKFinger VX10.0
- Communication : TCP/IP, RS485, USB Host
- Fingerprint Capacity : 1,500
- Card Capacity : 5,000
- Records Capacity : 80,000
- Access Control Interface : Electric lock, Door sensor, Alarm, Exit button, Door Bell
- Wiegand Signal : Wiegand input & output
- Aux. Input : 1ea for linkage function
- Power Supply : DC 12V/3A
- Operating Temperature : 0 ~ 45°C (32°~113°F)
- Operating Humidity : 20 ~ 80%

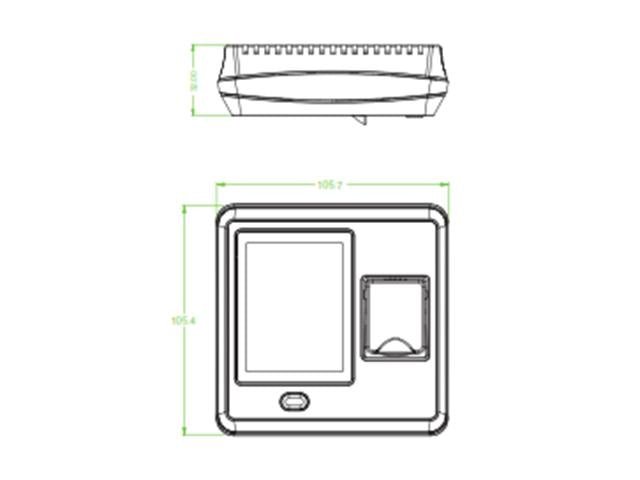

- Dimension(L x W x H) : 105 x 105 x 34mm
Downloads
Additional Information
| Device |
Fingerprint Reader |
| Type |
Based | Network | Standalone Mode |
| Highlights |
Operates in both Network Mode and Standalone Mode |
