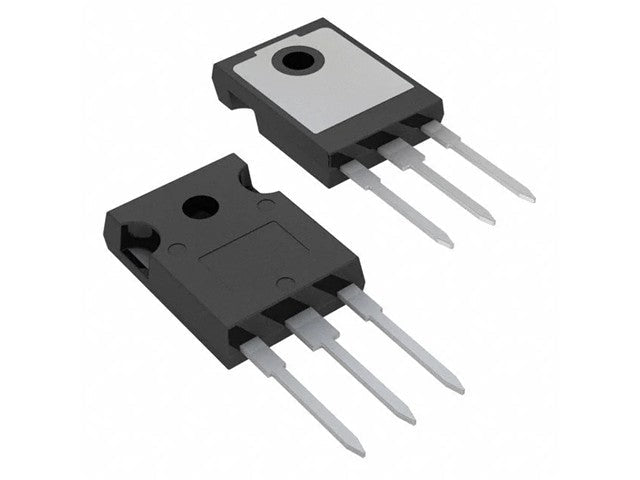

IRFP3710

Name: IRFP3710 - Communica [Part No: IRFP3710]
Brand: Communica
SKU: IRFP3710
Price: 54.60 ZAR
Availability: InStock

SKU: IRFP3710

BRAND: Communica

R 62.79_{(inc VAT)}
R 54.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

SIP MOSFET N-Channel 100V 49A TO247AC

SIP MOSFET N-Channel

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	57A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	25mOhm @ 28A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	190 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 25 V
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AC
Package / Case	TO-247-3

Additional Information

Device

N-Channel

Unlock powerful performance with the IRFP3710 N-Channel MOSFET. With a 100V rating and 49A continuous drain current, this reliable component ensures efficient energy management and durability in demanding applications. Upgrade your projects with this high-performance MOSFET for superior thermal stability and minimal resistance.
