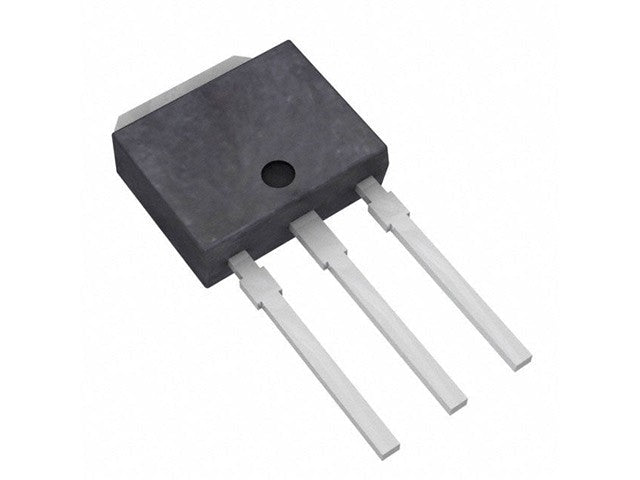

IRFU9024

Name: IRFU9024 - Communica [Part No: IRFU9024]
Brand: Communica
SKU: IRFU9024
Price: 11.33 ZAR
Availability: InStock

SKU: IRFU9024

BRAND: Communica

R 13.03_{(inc VAT)}
R 11.33_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: P Channel Mosfet Transistor

MOSFET P-Channel 60 V 8.8A (Tc) 2.5W (Ta), 42W

MOSFET P-Channel Transistor

Specifications

FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	8.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 5.3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 25 V
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251AA

Additional Information

Device

Transistor

Upgrade your electronic projects with the IRFU9024 P-Channel MOSFET. With a 60V drain-to-source voltage and a robust current capacity of 8.8A, this reliable transistor ensures efficient performance in high-temperature applications. Designed for optimal power dissipation and minimal resistance, it's perfect for enhancing circuit reliability and functionality. Experience superior control and durability in your designs today!
