IRLZ24

Name: IRLZ24 - Communica [Part No: IRLZ24]
Brand: Communica
SKU: IRLZ24
Price: 13.50 ZAR
Availability: OutOfStock

SKU: IRLZ24

BRAND: Communica

Sold Out
R 15.53_{(inc VAT)}
R 13.50_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

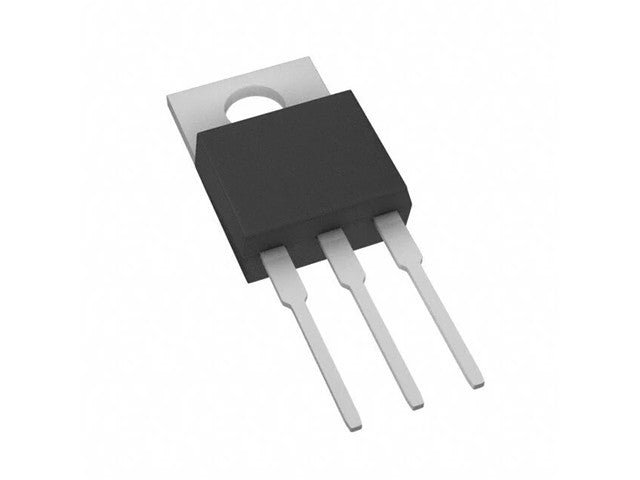

SIP MOSFET N-Channel 60V 17A 60W TO220AB

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 5V
Rds On (Max) @ Id, Vgs	100mOhm @ 10A, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 5 V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 25 V
Power Dissipation (Max)	60W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB

Additional Information

Device

IC

Upgrade your electronics with the IRLZ24 N-Channel MOSFET, offering robust performance with a 60V, 17A capability. Designed for efficiency and reliability, this TO-220AB component ensures minimal resistance and optimal power dissipation, making it perfect for high-demand applications. Experience superior thermal stability and enhance your projects with this essential semiconductor.
