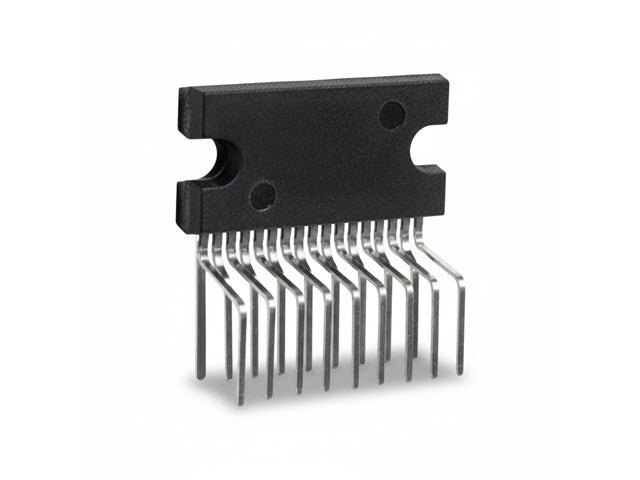

TDA1515BQ

Name: TDA1515BQ - Communica [Part No: TDA1515BQ]
Brand: Communica
SKU: TDA1515BQ
Price: 32.85 ZAR
Availability: InStock

SKU: TDA1515BQ

BRAND: Communica

R 37.78_{(inc VAT)}
R 32.85_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Amplifier ICs

Category: Audio Amplifier IC

POWAMP 2CH 2X12W 6-18V SIL13

Specifications

Supply voltage range: 6 V to 18 V
Typical operating voltage: 14.4 V
Maximum non-operating voltage: 28 V
Load dump protection voltage: 45 V
Peak output current: 6 A max
Quiescent current: Typical 75 mA
Standby current: Typical 1 µA
Input impedance: Greater than 1 MΩ
Ripple rejection: Typical 50 dB
Channel separation: Greater than 40 dB
Output offset voltage: Less than 50 mV
Minimum load impedance: 1.6 Ω

Additional Information

Device

IC

Upgrade your audio experience with the TDA1515BQ amplifier, delivering powerful 2x12W sound in a compact design. With a voltage range of 6-18V and exceptional channel separation, enjoy crystal-clear sound and reliable performance. Perfect for any audio setup, this amplifier ensures peak output and minimal distortion, making it an essential choice for audiophiles.
