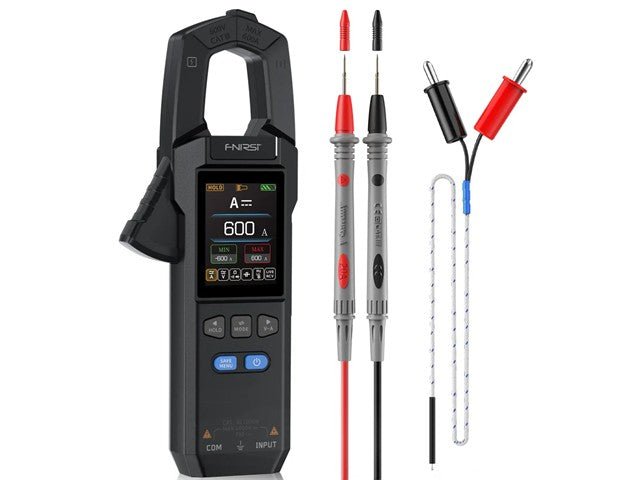

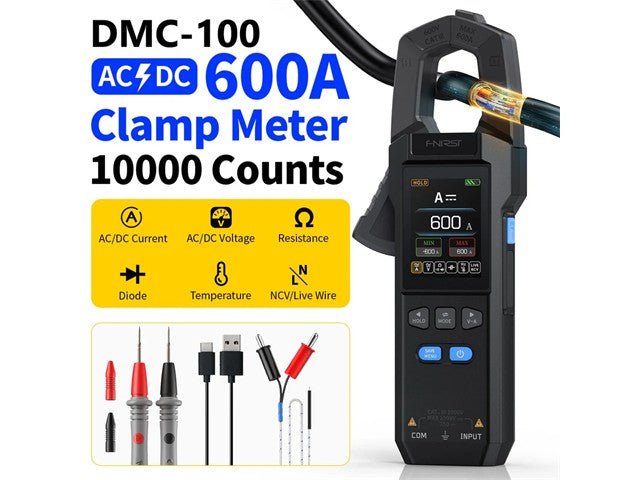

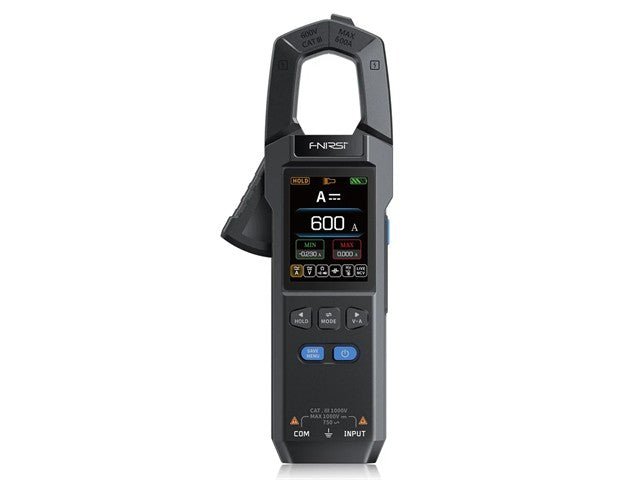

FNIRSI DMC-100 Digital Clamp Meter Multimeter 10 000 Counts, True RMS, 600A Curve Recording Rechargeable AMP Meter, Measures NCV, AC/DC Voltage Current, Continuity Capacitance Diode Resistance, Temperature
Digital Clamp Meter Multimeter

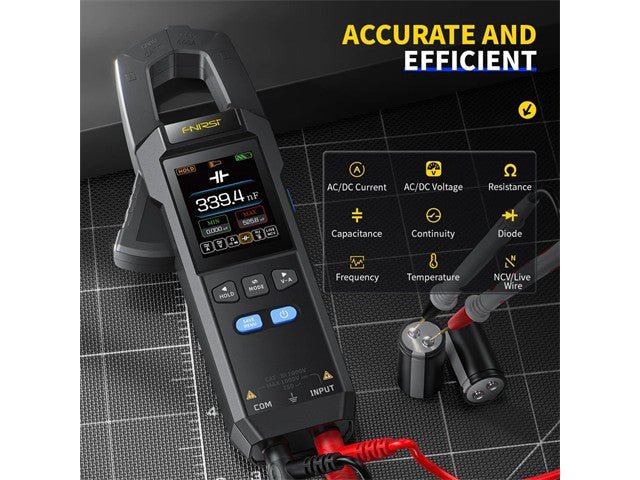

Features
-
High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
-

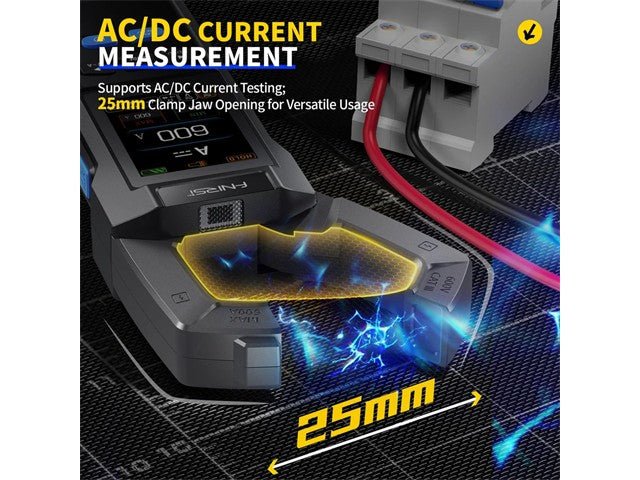

Wide Measurement Range: Supports up to 750V voltage and 600A current.
-
High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
-
Intuitive Interface: New UI with data curve display for easy reading at a glance.
-

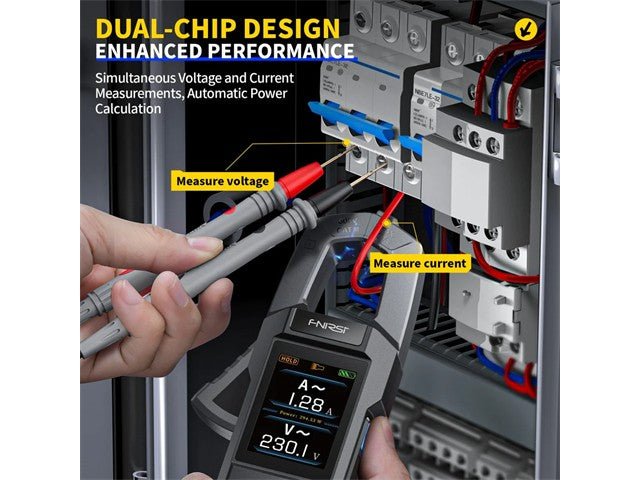

Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
-
NCV Function: Non-contact voltage measurement and zero/fire line identification.
-
Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
-
Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
-
Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
-
Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
-
Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
-
Temperature Unit Switching: Easily switch between temperature units (℃/℉).
-
Adjustable Brightness: Screen brightness is adjustable for various environments.
-
Firmware Upgradeable: Supports firmware updates to enhance functionality.
Specifications
| Screen |
2.0'' TFT color screen |
| Screen Resolution |
240 × 320 pixels |
| Battery |
3.7V, 1500mAh Lithium Battery |
| Charging Specification |
USB Type-C, 5V/1A |
| Product Size |
193 × 74 × 32 mm |
| DC Voltage |
9.999V / 99.99V / 999.9V |
| AC Voltage |
9.999V / 99.99V / 750.0V |
| DC & AC Current |
99.99A / 600.0A |
| AC Current |
4A / 40A / 600A |
| Resistance |
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ and 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω |
| Capacitance |
9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF |
| Frequency |
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz |
| Temperature Range |
-55 ~ 1300℃ / -67 ~ 2372℉ |
| Diode Measurement |
Support |
| Non-Contact Voltage Check (NCV) |
Support |
| Zero Fire Wire Check |
Support |
| Measuring Mode |
1. General Measurement
2. Waveform Display
3. Power Measurement |
| Measurement Gear |
Manual Adjustment |
| Maximum/Minimum Value |
Support |
| Power Calculation |
Support |
| Data Storage and Viewing |
Up to 30 groups of data |
| Language |
Chinese / English |
| Brightness Adjustment |
10-speed adjustment |
| Auto Power Off |
OFF / 5min / 15min / 30min |
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
Digital |
