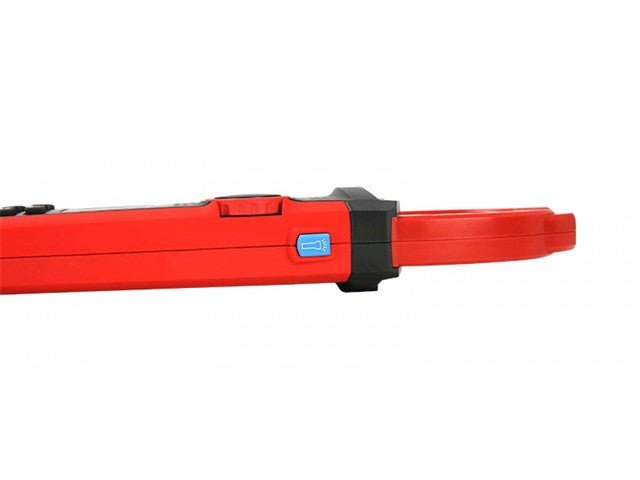

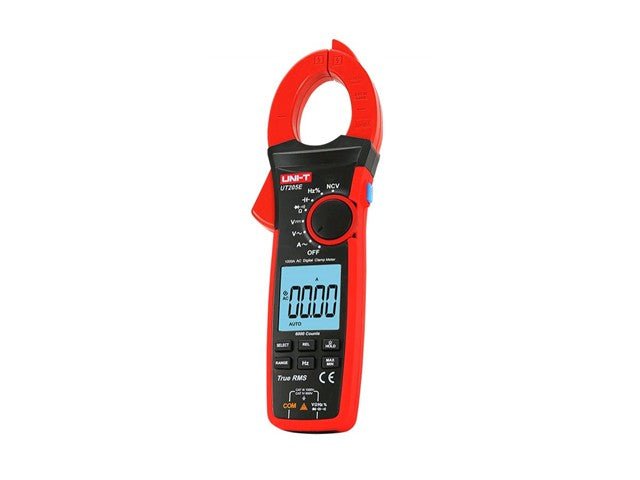

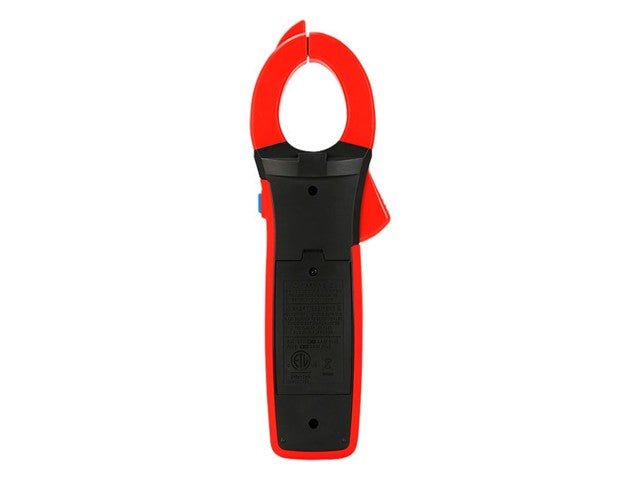

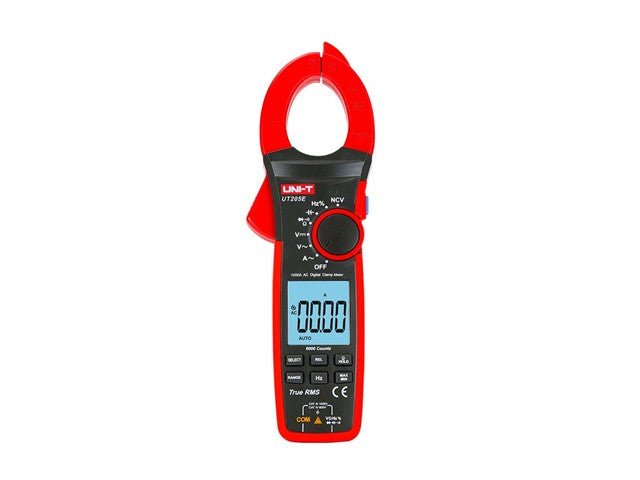

UNI - T UT205E - Clamp Multimeters & Accessories - 6935750520536

UNI-T UT205E

Name: UNI-T UT205E - Communica [Part No: UNI-T UT205E]
Brand: Uni-T
SKU: UNI-T UT205E
Price: 1300 ZAR
Availability: InStock

SKU: UNI-T UT205E

BRAND: Uni-T

In Stock
R 1,495.00_{(inc VAT)}
R 1,300.00_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: Clamp Multimeters & Accessories

Category: Clamp Multimeters & Accessories, New

Clamp Meter Digital 1000V AC/DC 1000A AC, True RMS, RES:60MΩ, CAP:60MF, Low Voltage Freq:10Hz~1MHz, Duty Cylce:10~90%, Display Count:6000, Jaw Size:42mm, NCV, Data Hold, Max/Mix, Diode, Continuity Test, CATIII 1000V, CATIV 600V

1000V Digital Clamp Meter

Specifications

Specifications	Range	UT205E
AC current (A)	1000A	±(2%+5)
AC current frequency response		50Hz~60Hz
AC voltage (V)	6V	±(1.2%+3)
AC voltage (V)	60V/600V/1000V	±(1%+8)
DC voltage (V)	600mV	±(0.8%+3)
	6V/60V	±(0.5%+5)
	600V	±(0.5%+5)
	1000V	±(0.5%+5)
AC voltage frequency response		40Hz~400Hz
Resistance (Ω)	600Ω	±(1%+3)
	6KΩ/60KΩ/600KΩ	±(1%+2)
	6MΩ/60MΩ	±(2%+8)
Capacitance (F)	60nF	±(4%+25)
	600nF/6μF/60μF/600μF	±(4%+5)
	6mF/60mF	±(10%+9)
Low voltage frequency (Hz)	10Hz~1MHz	±(0.1%+3)
Duty cycle (%)	10%~90%	±(2.6%+7)
Features
Display count		6000
Jaw opening		42mm
Current frequency		50Hz~60Hz
High voltage frequency		40Hz~400Hz
Auto power oﬀ		Yes
Continuity test		Yes
Auto/Manual range		Yes
Low battery indication		Yes
Diode test		Yes
Relative mode/Data hold		Yes
MAX/MIN		Yes
Function selection		Yes
Flashlight		Yes
Wake-up function		Yes
Auto power oﬀ current: ＜50μA		Yes
Input impedance (ACV/DCV)	≥10MΩ	Yes
General Characteristics
Power	1.5V battery (R03) x 3
Display	43mm x 45mm
Product color	Red and grey
Product net weight	465g
Product size	272mm x 81mm x 43.5mm
Standard accessories	Test leads, batteries, point contact temperature probe

Downloads

Datasheet - UNI-T UT205E

Additional Information

Device	Clamp Meter
Type	1000V \| Digital
