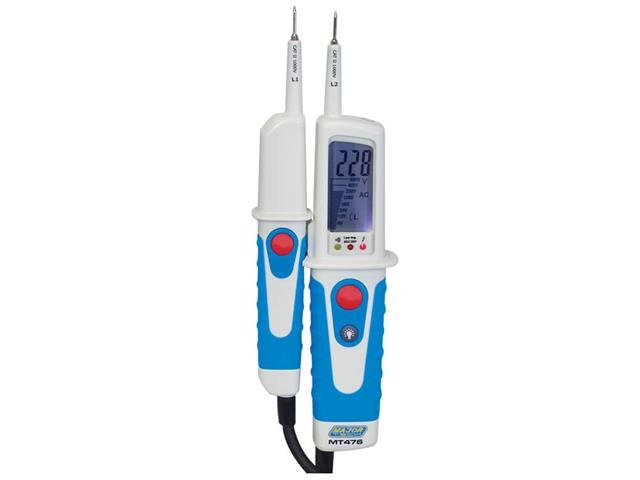

The MT476 is a 690V AC/DC Voltage Tester and is designed to meet electrician’s requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 400kΩ plus RCD Test. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.
Features
AC & DC Voltage detection from 6V to 690V AC and DC
Phase Rotation
2000 Count LCD display
Double Injection IP64 housing
Low Impedance test
Built-in Flashlight
Polarity Detection
Rotary Field indication
Continuity test to 200Ω
CAT IV 600V and CAT III 1000V
Specifications
DC Voltage
6 – 690V
DC Voltage resolution
1V
DC Voltage accuracy
±(1.0% +3)
AC Voltage
6 – 690V
AC Voltage resolution
1V
AC voltage accuracy
±(1.5% +5)
Rotary field
100 – 400V
Continuity
Yes
Continutity resolution
greater than/equal to 200kΩ
AC Bandwidth
50Hz to 60Hz
Digital Display
2000 count
Bargraph
Yes
Polarity Indication
Yes
Over-range indication
Yes
Low Input impedance
greater than 6kΩ
Flash Light
Yes
Enclosure
Double injection IP64
Low battery indication
Yes
Power source
2 x R03
Weight
255g
Dimensions
150 x 70 x 48mm
Additional Information
Device
Voltage Tester
Type
LCD
Discover the MAJ MT476 LCD Voltage Tester, your essential tool for accurate AC and DC voltage detection from 6V to 690V. With a user-friendly design, low impedance testing, and safety standards up to CAT IV 600V, it ensures reliable performance for electricians. Effortlessly identify phase rotation and continuity, all while benefiting from its durable IP64 housing and built-in flashlight. Ensure safety and precision in every job with the MT476!
