True RMS Flexible AC Current Clamp Meter with datalogger
True RMS Flexible AC Current Clamp Meter
Overview

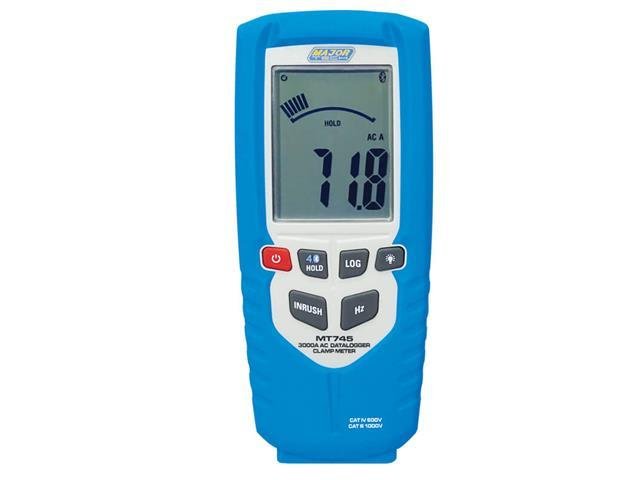

The MT745 3000A AC True RMS Clamp Meter is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can be used to perform live recordings or to transfer recorded data to a smart phone app. Using the Log Key will start a recording that will be stored on the instrument. The smart phone app allows the user to retrieve Data as well as set up recording sample rate. The unit features inrush current measurement as well as frequency measurement and has a large backlit LCD display making it easier to read measurements.
Features
- AC current True RMS measurements
- 3000 count Backlight LCD
- Analogue Bar graph
- Bluetooth interface
- 3000A AC flexible clamp
- Data Hold
- Inrush Current
- Frequency Measurement
Accessories
- Carrying case
- 2 x AAA x 1.5V batteries
- Meterbox iMM software

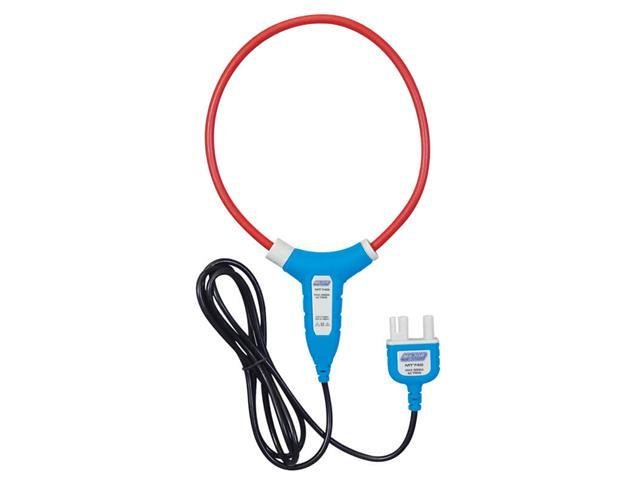

- Flexible Current Coil
- Instruction Manual
Specifications
| Jaw size |
150mm Flexi Clamp
|
| AC Current |
0.5A to 3000A AC
|
| AC current resolution |
0.01A
|
| AC Current accuracy |
±(3.0% +5)
|
| Resistance |
20MΩ
|
| Resistance accuracy |
±(1.0% +4)
|
| Frequency |
50Hz – 400Hz
|
| Frequency resolution |
0.1A
|
| Frequency accuracy |
±(3.0% +5)
|
| True RMS Measurements |
ACA
|
| AC Bandwidth |
50Hz to 400Hz
|
| Digital Display |
3000
|
| Bargraph |
Yes
|
| Bluetooth |
BLE 4.0
|
| Data logging |
Yes
|
| Over-range indication |
Yes
|
| Min Max |
Yes
|
| Data Hold |
Yes
|
| Back Light |
Yes
|
| Enclosure |
Moulded case
|
| Low battery indication |
Yes
|
| Power source |
2 x 1.5V AAA batteries
|
| Weight |
315g
|
| Dimensions |
230 x 76 x 40 mm
|
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
True RMS | Flexible | AC Current |
