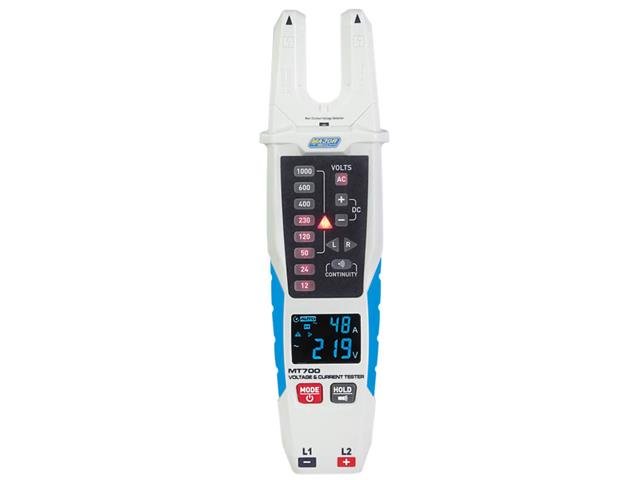

CAT IV 600V, 2000 Count True RMS 200A AC Digital Clamp Meter
AC Digital Clamp Meter
Overview
The MT700 is a CAT IV 600V, 2000 count True RMS 200A AC digital clamp meter with indication on a large backlit negative LCD display, with a clamp
jaw opening of 16mm. A superb feature for electricians is the ability to simultaneously measure current and voltage and view both readings on the LCD
display. The MT700 measures AC and DC voltage up to 1000V and displays the reading on both the LED’s and LCD display. This open jaw clamp
meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain
accurate readings. Added features include resistance measurements, Rotary Field Indication, continuity buzzer, data hold, built-in flashlight plus
Non-Contact Voltage detection. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Features
2000 count negative LCD display
Open Jaw Sensor
Ø16mm Cable Clamp size
Simultaneously displays voltage and current measurements
Measures DC voltage and AC voltage up to 1000V on LCD
LED indication of AC and DC voltage from 12V to 1000V
Resistance measurement to 2000Ω
Rotary Field Indication
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Data Hold function
Auto Power Off
Specifications
Function
Range
Resolution
Accuracy
AC Current
0A – 200A
1A
±(3.5% + 5 Digits)
DC Voltage
6V-1000V
1V
±(3.0% + 5 Digits)
AC Voltage
6V-1000V
1V
±(3.0% + 5 Digits)
Resistance
0Ω – 1999Ω
1Ω
±(5% + 10 Digits)
AC Bandwidth
40Hz to 400Hz
Digital Display
2000
Non-Contact Voltage (NCV)
Yes
Overrange Indication
Yes
Continuity
Yes
Diode Test
Yes
Jaw Size
16mm Open Jaw
Input Impedance
>10MΩ DCV & >10MΩ VAC
Data Hold
Yes
Back Light
Yes
Enclosure
Double moulded case
Low Battery Indication
Yes
Batteries
2 x AAA
Weight
259g
Dimensions
230 x 44 x 66mm
Safety Specs
IEC61010-1 CAT IV 600V
Additional Information
Device
Clamp Meter
Type
AC | Digital
The MAJ MT700 Digital Clamp Meter is your essential tool for accurate electrical measurements, featuring CAT IV 600V safety and a 2000 count display. With its open jaw design, easily measure AC/DC voltage and current in tight spaces, ensuring reliability and precision for electricians. Enjoy added features like a built-in flashlight, non-contact voltage detection, and a continuity buzzer, making it perfect for all your troubleshooting needs.
