VDV Wire Tester

Overview

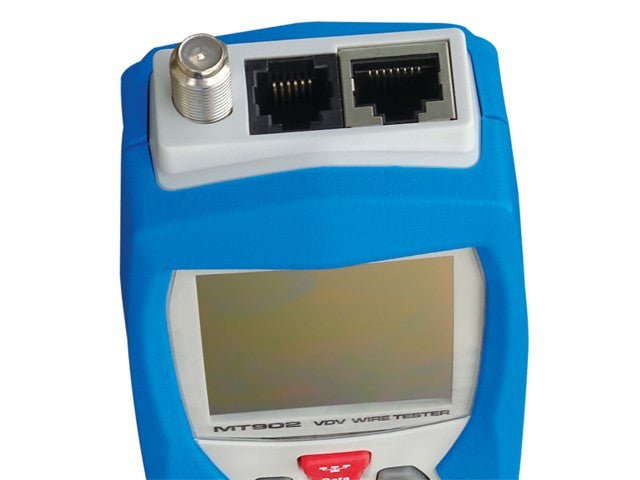

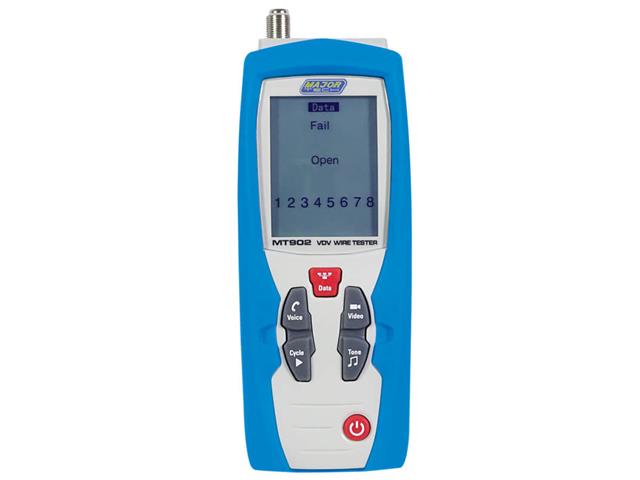

The MT902 is a professional VDV Wire Tester that analyses patch leads on phones, computer networks and coax cables in one easy step. This portable Voice, Data and Video meter is used to verify and troubleshoot RJ11, RJ12, RJ45 and F-connector cable. Indication on the large LCD display will map out and indicate open faults, short faults, split pairs and reverse wiring together with icons of PASS and FAIL status. The MT902 comes standard with 5 RJ45 Data and 5 Coax F Connector identification remotes that can be used by technicians to permit mapping as well as identify cable runs from patch panels to a wall outlet ports. The built-in tone generator can be used to locate cables in wiring closets and patch panels by using an optional amplifier MTC40 probe. Housed in a rugged double moulded case will provide years of reliable service.

Features

Analysing of Voice, Data and Video cables
Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables.
Detects shorts, opens, reversed polarity, crossed and split pairs

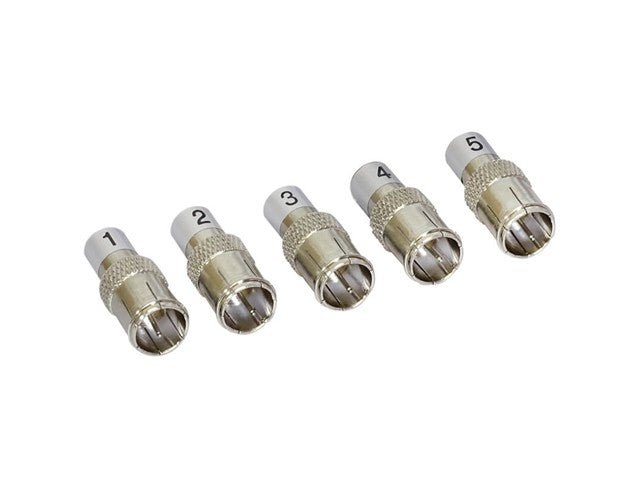

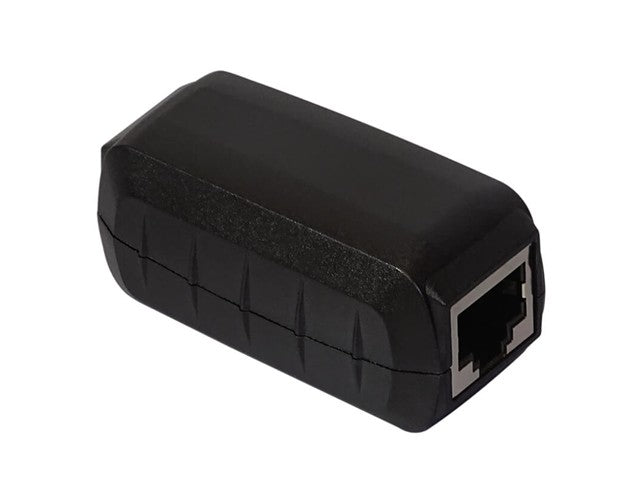

5 Data RJ45 Remote Identifiers, 5 Coax F-Connector Remote Identifiers
Generates three distinct, selectable digital tone patterns for cable tracing and trouble shooting
Flashing Voltage warning alerts user of unidentified hazardous voltage
Simple cable identification of patch panel or wall outlet port
Low Battery indication and Auto Power Off
PASS or FAIL indication of correct or error in wiring
Large LCD backlit display
Optional accessory: MTC40

Specifications

Function	Range
Cable Types	Shielded or Unshielded Cat7, Cat7A, Cat6, Cat6A, Cat5, CAT5A, Cat4Cat3, coax
Voice Tests	RJ-11/12 6-wire cables
Data Tests	RJ-45 8-wire cables
RJ-45 Remote	5 Remote mapping locations
Video Tests	F-connector coax cables
Tone	Use of Tone generator to trace phone lines
Digital Display	2.4-inch TFT colour screen
Maximum Coax Cable Length	305m
Minimum for Split Pair Detection	0.5m
Maximum Coax Cable Resistance	100Ω’s maximum DC
Max Voltage between any Two pins no damage	60V DC or 55V AC
Back Light	Yes
Enclosure	Moulded casing
Low Battery Indication	Yes
Batteries	2 x AA
Weight	230g
Dimensions	152 x 61 x 34mm
Safety Specs	EN 61326

Additional Information

Device	Wire Tester
Type	VDV

The MAJ MT902 VDV Wire Tester is your ultimate tool for quick and accurate testing of voice, data, and video cables. With its large LCD display, easily identify faults and ensure reliable connections for RJ11, RJ12, RJ45, and coax cables. Lightweight and portable, this tester features remote identifiers and a built-in tone generator for efficient troubleshooting, making it a must-have for professionals seeking dependable performance in any setting.
