MAJ MT870

SKU: MAJ MT870

BRAND: Major Tech


Auto Ranging Digital Multimeter 2000AMPS AC/DC

Auto Ranging Digital Multimeter

Overview

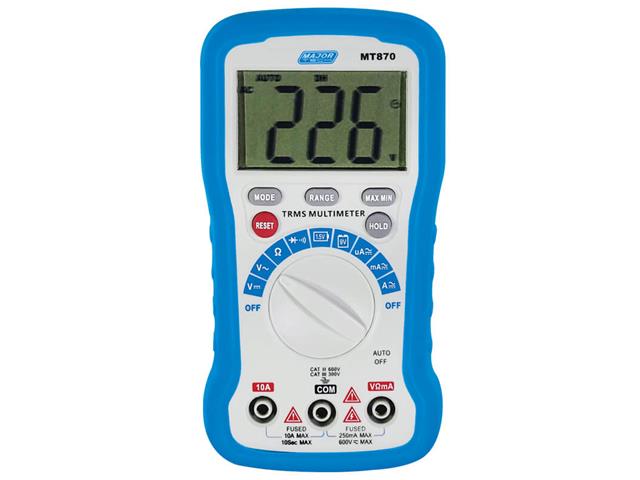

The MT870 digital multimeter is a True RMS slim sized, portable, robust drop proof multimeter. This multimeter has a 2000 count digit LCD with large 25mm digits that offer clear and easy reading. The meter offers excellent performance and is ideal as a handy digital multimeter.

Accessories:

  • Instruction Manual

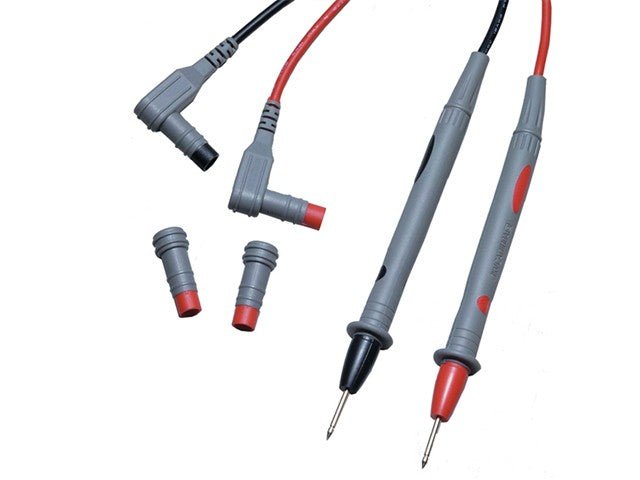

  • Test Leads
  • 2 x 1.5V AA Batteries

Features

  • 2000 Count Display
  • Double Insulation
  • Fuse Protection
  • Auto Power Off
  • Diode & Audible Continuity Test
  • Auto Range & Manual Range
  • Battery Test for 1.5V and 9V Batteries
  • CAT III 300V and CAT II 600V

Specifications

  • DC Voltage : 600V
  • DC Voltage resolution : 0.1mV
  • DC Voltage accuracy : ±(0.5% +2)
  • AC Voltage : 600V
  • AC Voltage resolution : 1mV
  • AC voltage accuracy : ±(0.8% +3)
  • DC Current : 10A
  • DC Current resolution : 0.1µA
  • DC Current accuracy : ±(1.2%+2)
  • AC Current : 10A
  • AC current resolution : 0.1µA
  • AC Current accuracy : ±(1.5% +3)
  • Resistance resolution : 0.1Ω
  • Resistance accuracy : ±(1.0% +2)
  • Continuity : Yes
  • Diode Test : Yes
  • True RMS Measurements : Yes
  • AC Bandwidth : 40Hz to 400Hz
  • Display : 2000 count LCD
  • Over-range indication : Yes
  • Input Impedance : 10MΩ VDC & 10MΩ VAC
  • Data Hold : Yes
  • Enclosure : Rubber Holster
  • Low battery indication : Yes
  • Power Supply : 2 x 1.5V AA Batteries
  • Weight : 250g (including battery)
  • Dimensions : 150(L) x 75 (W) x 36 (D) mm

Downloads

Additional Information

Device Multimeter
Type Auto Ranging | Digital

-->
