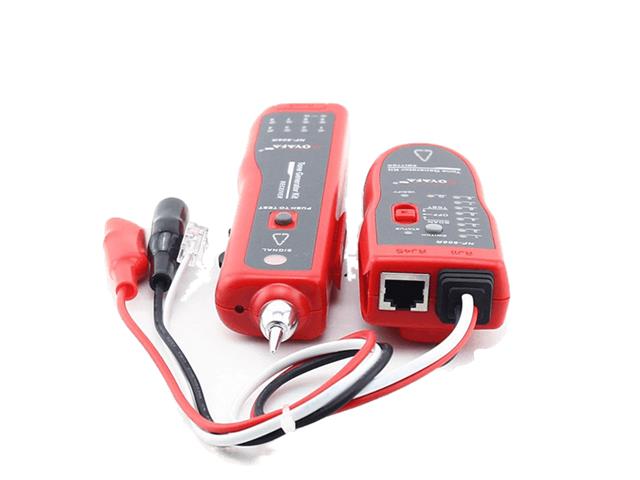

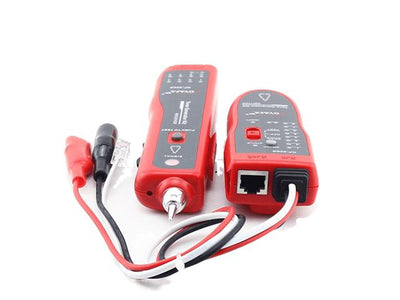

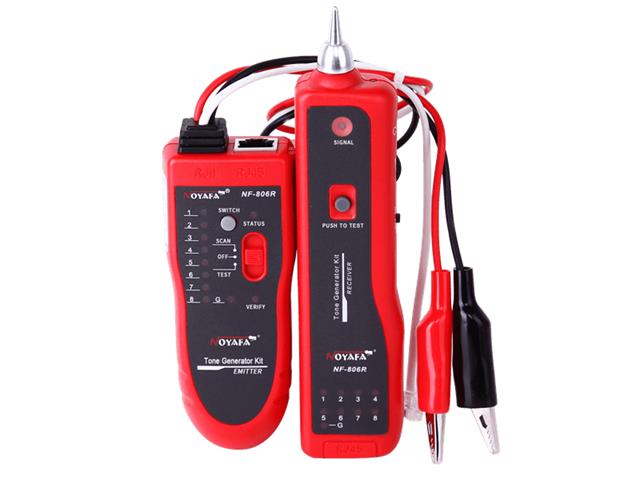

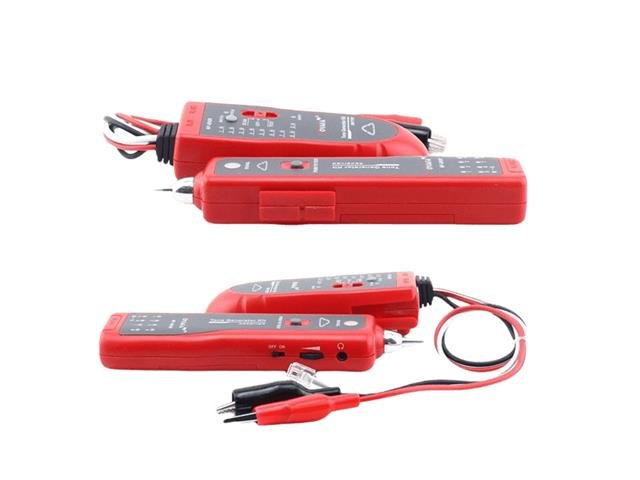

NF-806R TONE & PROBE TESTER

SKU: NF-806R TONE & PROBE TESTER

BRAND: Noyafa


Tone & Probe Tester, Identify Unknown Cables Quickly, Tests Continuity, Diagnose Break Points, Verify LAN Open, Short Circuit and Crossed Pairs, Pin to Pin Cable Map, Lead Conected to Transmitter Directly. ( Requires 2X 9V Battery, Not Supplied)

Tone & Probe Tester

Features

  • Check and find the needed cables among so many cables in one time.
  • Continuity test — wiremap for Lan cables.
  • Diagnose the breakage, open, short, cross.
  • Visible indication: pin-to-pin cable map for individual cable (not by pairs).
  • Transmitter with RJ11 connector and pair of alligator clips.
  • Low Voltage alarm function.
  • Earphone for using in noisy environments.
  • LED light assists to use in dark corners.
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  • 100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.

Specifications

NF-806 Transmitter specifications

  • Tone frequency : 200Hz
  • Max. distance of transmission : Up to 2 kilometers
  • Max. working current : 10mA
  • Volume Regulate Function : Audio volume level control
  • Tone mode : 2 Tones, adjustable
  • Compatible connectors : RJ45, cable clip with RJ11 connector
  • Max. signal voltage : 8Vp-p
  • LED lights display : Wiremap, tone, tracing
  • Voltage protection : DC 48V

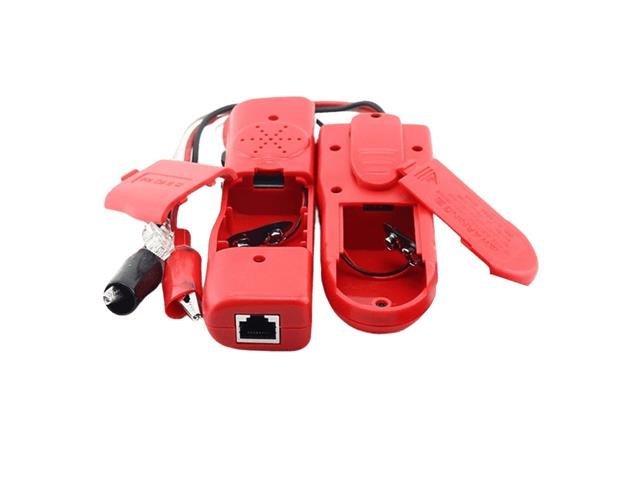

  • Battery Type : DC9.0V(NEDA 1604/6F22) x 1pc
  • Dimensions (LxWxD) : 15 x 3.7 x 2cm

NF-806 Receiver specifications

  • Frequency : 200kHz
  • Max.working current : 30mA
  • Earphone jack : 1
  • Battery Type : DC9.0V(NEDA 1604/6F22) x1pc
  • Dimensions (LxWxD) : 12.2 x 4.5 x 2.3cm

Additional Information

Device Tester
Type Tone & Probe

-->
