Overview

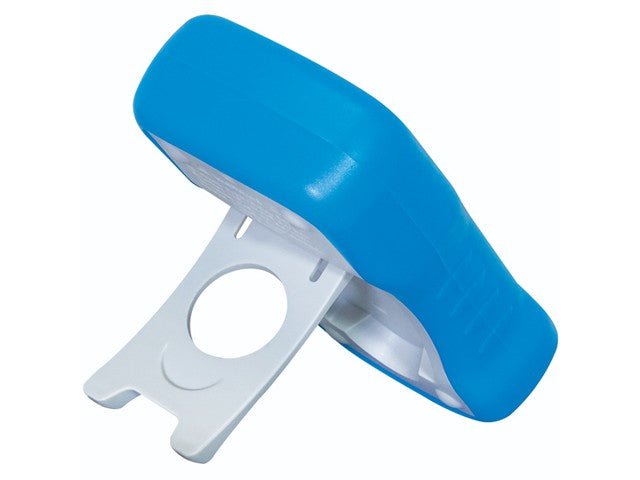

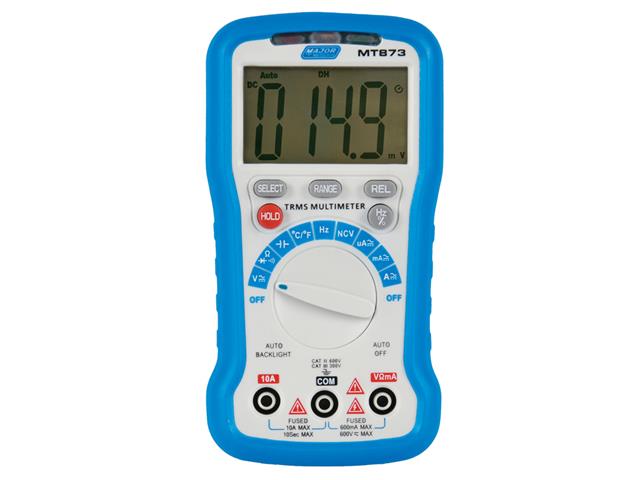

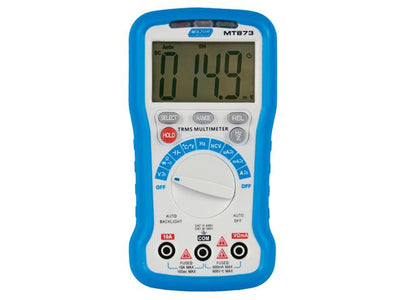

The MT873 is a 600V AC/DC True RMS Multimeter and can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Non-Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features a data hold & relative mode functions. This multimeter is a slim sized, portable, robust drop proof digital multimeter has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centered on large-scale IC A/D converters in conjunction with an over-load protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.
Features
- Large 6000 count LCD display
- Measures AC and DC voltage up to 600V
- Measures AC and DC current up to 10A
- Capacitance and Frequency Measurements
- Temperature measurement from -20°C to 1000°C
- NCV – Non-Contact Voltage Detector
- Continuity Buzzer & Diode Test
- Min, Max and Data Hold Function
- Relative Mode
- Auto Power Off
- Auto back light
Specifications
| Function |
Range |
Resolution |
Accuracy |
| DC Voltage |
0.1mV – 600V |
0.1mV |
±(0.5% + 2 Digits) |
| AC Voltage |
1mV – 600V |
1mV |
±(1.0% + 3 Digits) |
| DC Current |
0.1μA – 10A |
0.1μA |
±(1.2% + 2 Digits) |
| AC Current |
0.1μA – 10A |
0.1μA |
±(1.5% + 3 Digits) |
| Duty Cycle |
0.1 to 99.9% |
0.001 |
±(2% + 2 Digits) |
| Resistance |
0.1Ω – 60MΩ |
0.1Ω |
±(1.0% + 2 Digits) |
| Frequency |
0.001Hz – 9.999MHz |
0.001Hz |
±(0.1% + 5 Digits) |
| Capacitance |
1pF – 99.99mF |
1pF |
±(2.5% + 5 Digits) |
| Temperature |
-20°C to 1000°C |
1°C |
±(3.0% + 2°C Digits) |
| True RMS Measurements |
Yes |
| AC Bandwidth |
40Hz to 400Hz |
| Digital Display |
6000 |
| Continuity |
Yes |
| Diode Test |
Yes |
| Non-Contact Voltage (NCV) |
Yes |
| Overrange Indication |
Yes |
| Input Impedance |
10MΩ VDC & 10MΩ VAC |
| Data Hold |
Yes |
| Enclosure |
Rubber holster |
| Low Battery Indication |
Yes |
| Battery |
9V |
| Dimensions |
150 x 100 x 36mm |
| Safety Specs |
IEC61010-1 CAT II 600V |
Downloads
Additional Information
| Device |
Multimeter |
| Type |
True RMS | Digital |
