Clamp Meter Digital 600V AC/DC 400A AC Res:40m, Cap:40mF, Temp, Freq:1mhZ, Display Count 4000, Auto Range, Jaw Capacity 30mm, Diode, Data Hold, NCV, Auto Power Off, Flashlight, Continuity Buzzer, Low Bat Indication, Input Protection, CATIII 600V
Clamp Meter Digital 600V
Overview

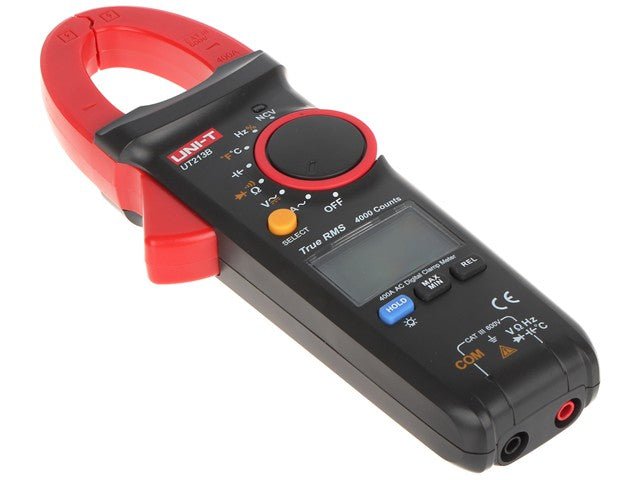

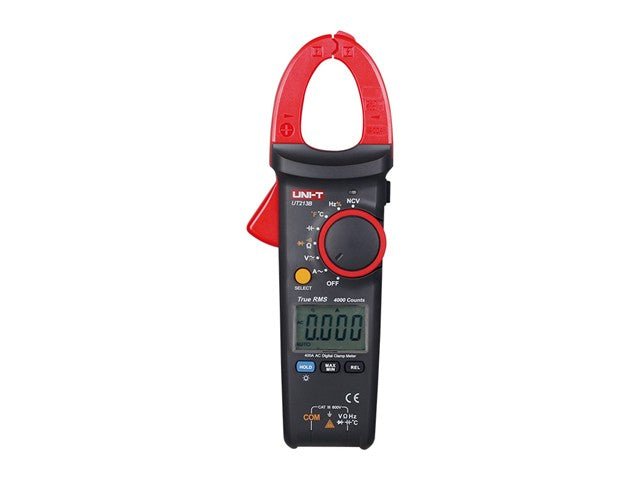

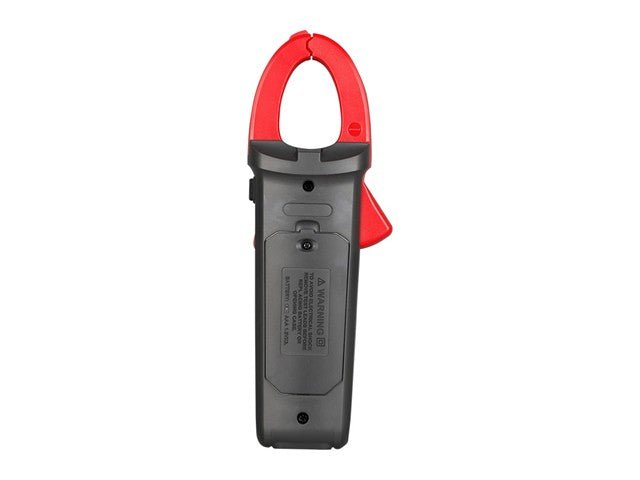

UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters are
designed for electricians and HVAC/R technicians. The built-in flashlight also makes these
meters useful tools when working in dark environments.
Specifications
- AC current (A) : 400A :±(1.8%+9)
- DC current (A) : 400A :±(1.2%+5)
- AC voltage (V) : 600V :±(1.2%+5)
- DC voltage (V) : 600V :±(0.8%+1)
- Resistance (Ω) : 40MΩ :±(1%+2)
- Capacitance (F) : 40mF :±(4%+5)
- Frequency : 10Hz~1MHz :±(0.1%+4)
Temperature
- -40°C~1000°C : ±(1%+3)
- -40°F~1832°F : ±(1%+6)
- Display count : 4000
- Auto range : Yes
- Jaw opening : 30mm
- True RMS : Yes
- Diode : Around 3.0V
- NCV : Yes
- Data hold : Yes
- Relative mode : Yes
- MAX/MIN : Yes
- LCD backlight : Yes
- Flashlight : Yes
- Auto power off : Yes
- Continuity buzzer : Yes
- Low battery indication : ≤3.6V
- Input protection : Yes
- Input impedance for DCV : ≥10MΩ
General Characteristics
- Power : 1.5V battery (R03) x 3
- Display : 38mm x 24mm
- Product net weight : 280g;
- Product color : 220mm x 75mm x 40mm
- Product size : 280g;
Standard accessories

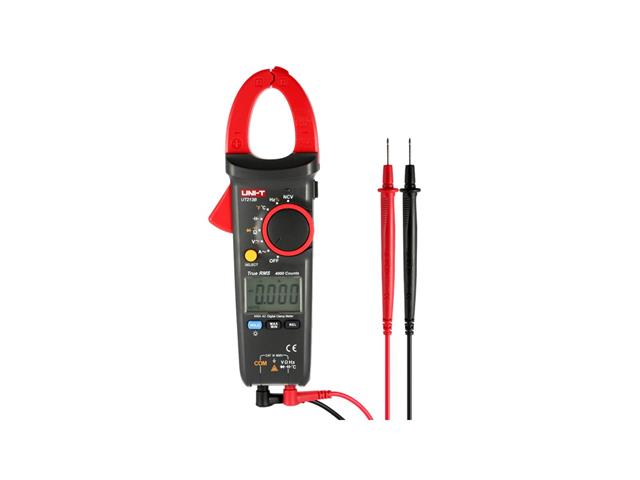

- Standard individual packing : Batteries, test leads
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
Digital |
Discover the UNI-T UT213B Clamp Meter, a must-have tool for electricians and HVAC/R technicians. With its 400A AC/DC capability and CAT III 600V safety rating, this digital clamp meter ensures precision and safety. Enjoy features like auto range, a built-in flashlight for dark environments, and true RMS measurement for accurate readings. Upgrade your toolkit with this reliable, user-friendly device that simplifies your electrical tasks.
