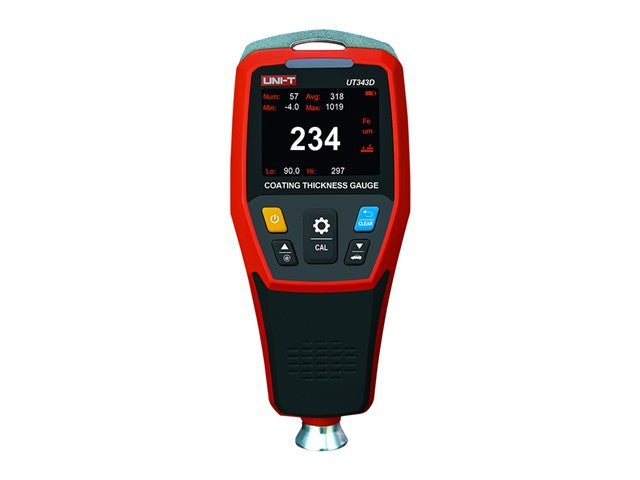

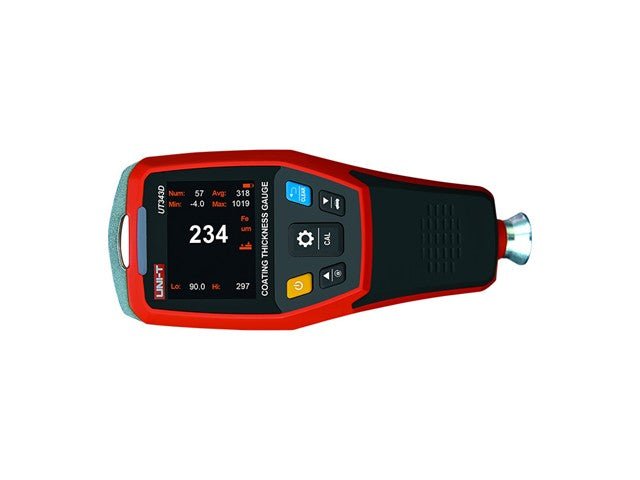

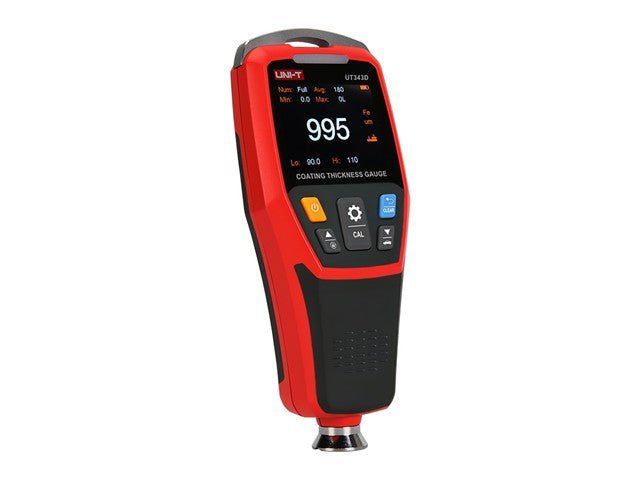

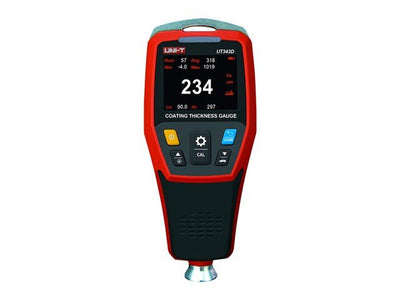

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Features
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Auto power off
Low battery indication
Specifications
Measuring range : 0~1250um
Accuracy : ±(3%H+1)um
Resolution : 0.1um (0~99.9um); 1um (100~1250um)
Measurement method : Single/Continuous
Measurement mode : Max/Min/Avg
Metal type : Ferrous/ non-ferrous
Features
Display type : 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control : Yes
Auto rotatable screen : Yes
Unit conversion : Yes
Audio alarm : Yes
LED alarm : Yes
PC analysis software : Yes
USB communication : Yes
Quick test mode : Yes
Data storage : 500 groups
Auto power off : Yes
Low battery indication : Yes
General Characterisitics
Power : 1.5V AA battery (LR6) x 2
Display : 48mm x 36mm
Product color : Red and grey
Product net weight : 175g
Product size : 153.5mm x 64.5mm x 41mm
Standard accessories : Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing : Gift box, English manual
Discover the UNI-T UT343D Coating Thickness Gauge, your essential tool for precise measurements on ferrous and non-ferrous materials. With a range of 0-1250um and advanced features like a quick test mode, audio alarms, and data storage for 500 sets, enhance your workflow efficiency and accuracy. The auto-rotatable 2-inch TFT LCD ensures easy readability, making this gauge perfect for professionals seeking reliability and convenience.
