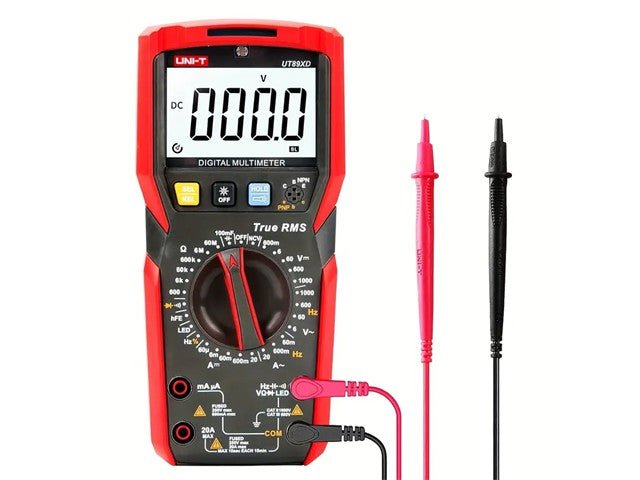

UNI-T UT89XD

Name: UNI-T UT89XD - Communica [Part No: UNI-T UT89XD]
Brand: Uni-T
SKU: UNI-T UT89XD
Price: 652.18 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: UNI-T UT89XD

BRAND: Uni-T

R 750.01_{(inc VAT)}
R 652.18_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter 1000V ACDC, 20A ACDC, True RMS, Display Count:6000, RES:60MΩ, CAP:100mF, FREQ:10MHz, Dual Range NCV Test, Flashlight, Transistor hFE, Diode/Continuity Test, Audio Visual Alarm, Data Hold, LED Test, CATII 1000V

1000V ACDC Digital Multimeter

Overview

UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

Features

1000V AC/DC； 20A AC/DC
True RMS, 6000 count
Dual range NCV test which quickly identifies neutral and live wires through light intensity
Audible/visual alarm
Capacitor charging indicator
Ergonomic design
Double injection molding
1m drop proof
Flashlight; Auto backlight

Specifications

Specifications	Range	UT89XD
DC voltage (V)	600mV/6V/60V/600V/1000V	±(0.5%+2)
DC voltage (V)	200mV/2V/20V/200V/1000V
AC voltage (V)	6V/60V/600V/1000V	±(0.8%+5)
AC voltage (V)	200mV/2V/20V/200V/1000V
DC current (A)	60μA/60mA/600mA/20A
	60μA/6mA/60mA/600mA/20A	±(0.8%+8)
	2000μA/200mA/20A
AC current (A)	60mA/600mA/20A	±(1%+12)
AC current (A)	2000uA/200mA/20A
Resistance (Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
Capacitance (F)	100mF	±(2.5%+20)
Capacitance (F)	200mF
Conductance (ns)	200nS
Frequency (Hz)	9.999Hz/9.999MHz	±(0.1%+4)
Frequency (Hz)	60MHz
Duty cycle	0.1%~99.9%	±(2%+5)
Temperature (℃)	-40℃~1000℃
Temperature (℉)	-40℉~1832℉
Live wire test
LED test		12V
Audible/visual alarm	V/A/Cap/Diode	LED/hFE/NCV
Transistor Hfe		Yes
Dual range NCV test		Yes
Flashlight		Yes
MAX/MIN
Peak Hold
LPF measurement

Downloads

Datasheet - UNI-T UT89XD

Additional Information

Device	Multimeter
Type	1000V \| ACDC \| Digital

Discover precision with the UNI-T UT89XD Digital Multimeter, featuring true RMS measurements up to 1000V AC/DC and 20A. Perfect for professionals and DIY enthusiasts, it offers advanced functions such as dual range NCV testing, a flashlight for low-light conditions, and an audio-visual alarm for safety. Its ergonomic design and robust build ensure reliability and ease of use, making it an essential tool for accurate electrical diagnostics.
