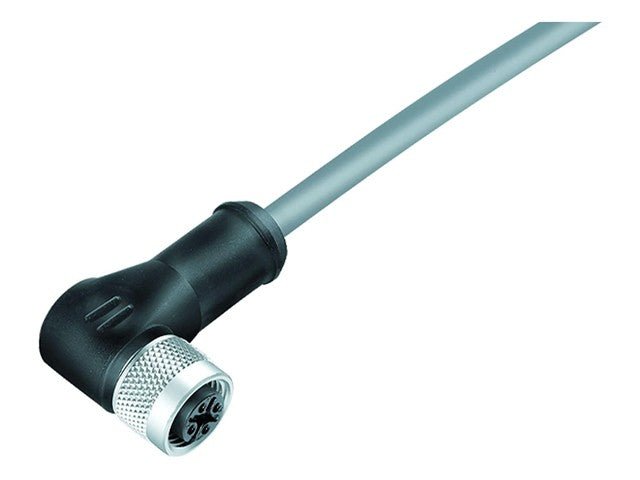

Cordset M12 A COD Female Right Angled Connector 8 Pole Screw Lock - 2M PVC Shield Cable IP68

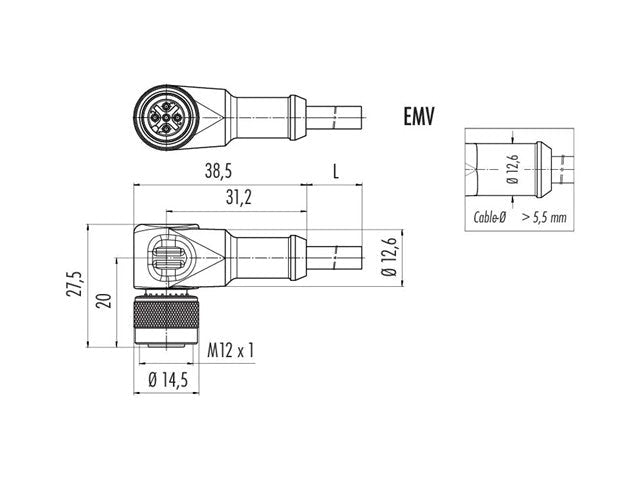

Cordset M12 A COD Right Angled Connector
Specifications
Connector design
Female angled connector
Type standard
DIN EN 61076-2-101

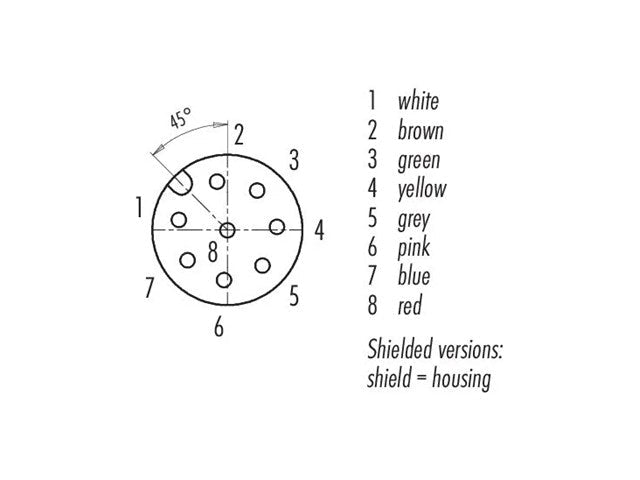

Coding
A-coded
Cable length
2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version
Connector socket angled
Connector locking system
screw
Termination
moulded on the cable
Degree of protection
IP67
Connection cross-section
0.25 mm² / AWG 24
Temperature range from/to
-25 °C / 90 °C
Mechanical operation
> 100 Mating cycles
Weight (g)
304.76
Customs tariff number
85444290
Country of Origin
DE
Electrical parameters
Rated voltage
60 V
Rated voltage UL
2457
Rated impulse voltage
800 V
Rated current
2.0 A
Insulation resistance
≥ 1010 Ω
Pollution degree
3
Overvoltage category
II
Insulating material group
II
EMC compliance
shielded
Shield connection
Shield on the threaded ring
Material
Housing material
PUR
Contact body material
PUR
Contact material
CuSn (bronze)
Contact plating
Au (gold)
Locking material
CuZn (brass)
REACH SVHC
CAS 7439-92-1 (Lead)
SCIP number
89f8a2ce-13d9-45dd-a4c2-b76a8319496e
Cable data
Structure of the cable
Cable diameter
6.8 mm
Cross section
8 x 0.25 mm²
Sheath material
PVC
Single-lead insulation
PVC
Single-lead structure
32 x 0.10 mm
Cable color
grey
Electrical properties
Conductor resistance
75 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable
≥ 5 x Ø
Bending radius, moving cable
≥ 10 x Ø
Bending cycles
> 2 million
Permitted acceleration
max. 5 m/s² + 1 m/s²
Travel distance, horizontal
5 m/s² -> 5 m
Travel distance, vertical
5 m/s² -> 2 m
Travel speed
≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to
-5 °C / 105 °C
Temperature range cable fixed from/to
-40 °C / 105 °C
Additional Information
Device
Connector
Enhance your connectivity with the 77-3534-0000-20708-0200 M12 A COD Female Right Angled Connector. This durable, 2M PVC shielded cordset offers IP68 protection, ensuring reliable performance in challenging environments. With a robust screw lock and high-temperature resistance, it’s perfect for industrial applications. Upgrade your connections today for unparalleled reliability and efficiency!
