RKWUE 19-242/15M

Name: RKWUE 19-242/15M - Communica [Part No: RKWUE 19-242/15M]
Brand: Lumberg Connect
SKU: RKWUE 19-242/15M
Price: 6105 ZAR
Availability: OutOfStock

SKU: RKWUE 19-242/15M

BRAND: Lumberg Connect

Sold Out
R 7,020.75_{(inc VAT)}
R 6,105.00_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M23 Power Cordset

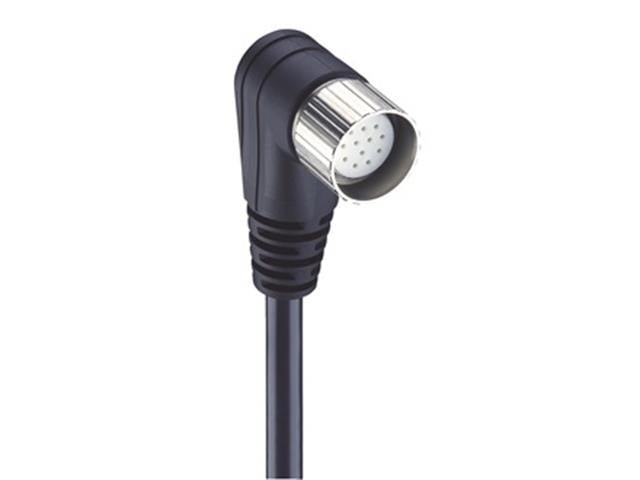

Cordset - Power M23 Female Angled. 19 Pole Single End - 15M PUR Black Cable.- IP67

M23 Female Angled Power Cordset

Specifications

Product Family	Power Connector
Product Sub Family	M23 Power
Connector Type	Cordset, single ended
Type of Contact / Gender	female
Connector Design	angled
Number of Pins	19(18+PE)
Shielding	Unshielded
Attachment Type	Grounded Coupling Nut
Rated Voltage	125 V
Rated Impulse Voltage	1.5 kV
Operating Voltage	120 V AC/DC
Rated Current*	16 x 8 A (pin-Ø 1 mm), 2 x 10 A (contact-Ø 1.5 mm)
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-25°C to +80°C
Protection Degree / IP Rating**	IP67
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	PBT
Contact Bearer Color	white
Flammability Class (Contact Bearer)	UL 94 V0
Molded Body Material	TPU
Molded Body Color	black
Flammability Class (Molded Body)	UL 94-HB
Attachment Material	CuZn, nickel-plated
O-Ring Material	NBR

Cable Number	242
Conductor Size	16x0.5mm² + 3x1.0 mm²
Number of Wires	19
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 2 M
Conductor material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	Ø 11.60 ±0.30 mm
Wire Insulation Material	PP
Insulated Wire Diameter	16x Ø1.45 mm + 3x Ø1.95 mm
Ambient Temperature (Fixed Installation)	-50°C to +80°C
Ambient Temperature (Flex Installation)	-25°C to +80°C
Ambient Temperature (Drag Chain Inst)	max. +60°C
UL Cable Type	AWM: 21198 / 20549
Flammability Class (Cable Jacket)	IEC 60332-2, VDE 0482-265-2-2, EN 50265-2-2, FT2; flame-retardant

RoHS Compliant	yes

Halogenfree	IEC 60754-1, VDE 0482-267, EN 50267-2-1

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note	Do not connect / disconnect under load.
Particularities	When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54.

Downloads

Datasheet - RKWUE 19-242/15M

Additional Information

Device	Cordset
Type	M23 \| Female \| Angled \| Power

Upgrade your power connectivity with the RKWUE 19-242/15M M23 Female Angled Cordset. This durable 15M PUR black cable features 19 poles and an IP67 rating, ensuring reliable performance in demanding environments. Perfect for industrial applications, it provides superior insulation and resistance, ensuring safety and longevity. Enhance your setup with this high-quality power cordset today!
