Total Metal body construction, IP66 rate protection
IR illumination & power consumption is variable dependant on zoom factor

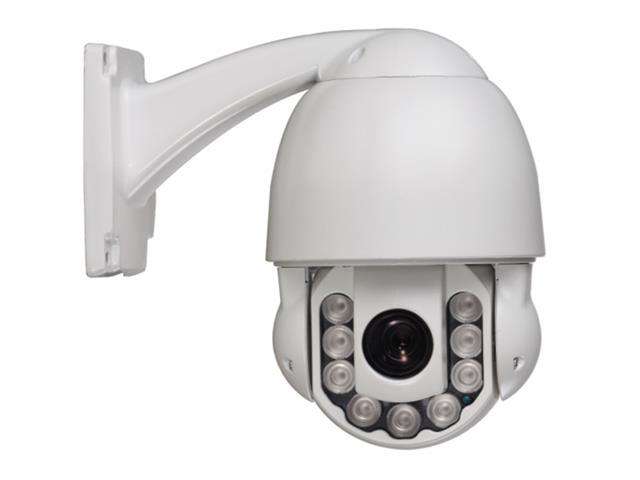

PTZ XY 9045AHD100 2MP
Specification
Camera
Sensor : 1/3" Progressive 2441+SONY323
Effective Pixels : 1080P(1080X1980)
Total Pixels : 2.0MP
Lens : 10X optical zoom
Iris : F1.6 ~F2.8
View of Angle : H:51.8°(W)~5.86° (T) V:39.1° (W) ~4.4° (T)
Min. Illumination : Color: 0.1 Lux \ B/W: 0.01Lux
WDR : Digital WDR
BLC : On / Off
Picture Effects : Auto / Color / B & W / Negative
D/N : IR-CUT
S/N Ratio : =50dB
Dome
Pan Range : 360°continuous rotation
Tilt Range : 0°~93°
Manual Pan Speed : 0.02~45°/S
Manual Tilt Speed : 0.02~45°/S
Preset Points : 128
Guard Tours : 1groups
Guard Points : Max.16 Points, dwell time user selectable
Operating Temperature : Outdoor: -40°~ +60°
Operation Menu : English
Pan and Tilt Position Display : Support
Humidity : =95% Non Condensing
Power : DC12V
Consumption : =15W
Lightning Protection : Transient Voltage 6000V
Video Interface Output : CVI/TVI/AHD
Communication Mode : RS485 (+/-)/ Coaxial Cable
Connection : Coaxial Cable
Related Validation : IP66,CE,FCC,RoHs
IR Parameters
Auto Control IR LED PWM
LED Array 42Mil 9PCS
IR Distance : Up to 60 meters
Support Ambient Light Detection : IR Illumination on 1-15 Grades Selectable;
Enhance your security with the PTZ XY 9045AHD100 2MP Speed Dome Camera. Featuring a robust 10X optical zoom, 1080P HD video, and IP66 weatherproofing, this outdoor camera delivers clear, real-time surveillance up to 500 meters. With advanced IR illumination and precise pan-tilt capabilities, it’s the perfect solution for comprehensive monitoring.
