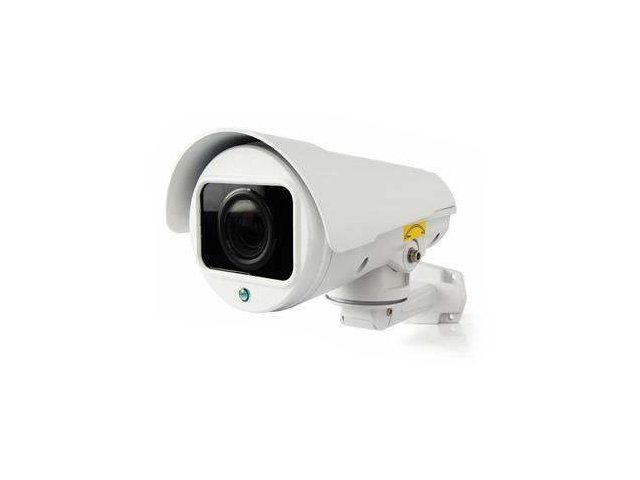

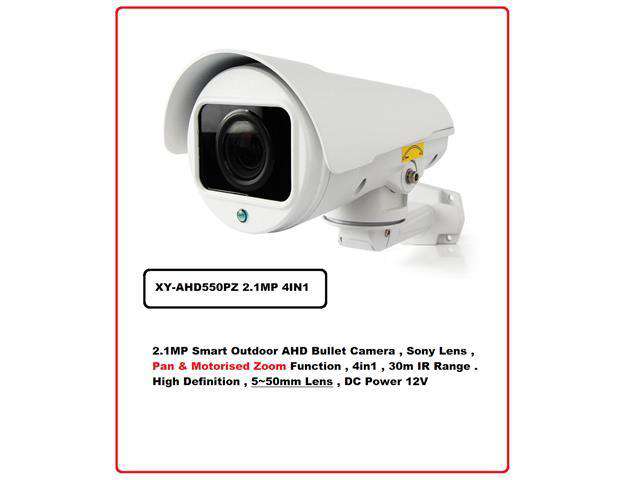

2.1MP Smart Outdoor AHD Bullet Camera , Sony Lens , Pan & Motorised Zoom Function , 4in1 , 30m IR Range . High Definition , 5~50mm Lens , DC Power 12V
Overview
Features
OSD menu is available
Total Metal housing, IP66
A-B scan, tour available
Support audio (optional)
Support coaxical function
Real time transmission,lossless video
Support AHD/TVI/CVI/CVBS output
Specification
Motorised Pan zoom Camera
- DSP: NEXTCHIP2441
- Sensor: 1/3"" CMOS 2MP SONY323
- Output pixel: 1920x1080,1920x1080
- Lens: 10X f=5.1mm~51mm
- WB: Auto/Indoor/Outdoor/Manual
- BLC: Support
- AGC: Auto/Manual
- S/N Ratio: >50dB
Dome
- Rotation Range: Pan:0º~220º , Tilt:~45º~25º(Manual)
- Rotation Speed: Pan:0~30°/s
- Preset Points: 220pcs preset( Dwell time 01-60s interval available)
- Guard Tours: 3 groups ( Each group 16 preset,dwell time and speed selectable)
- AB scan range: Any point in Pan range: 0º~200º
- AB scan speed: 1-9 grades
- Signal Transfer: AHD/CVI/TVI/CVBS selectable
- Operating temperature: -15?~+60?
- Consumption: =10W
- Lightning Protection: Transient voltage 6000V
- Related validation: IP66,CE,FCC,RoHs
IR parameters
- Auto Control IR LED PWM
- IR distance Up to 50 meters
- LEDs: 4 PCS Array 42Mil IR LED
- Support ambient light detection IR illumination on 1-9 grades selectable
- Operating Temperature: 32 to 158 degrees F.
