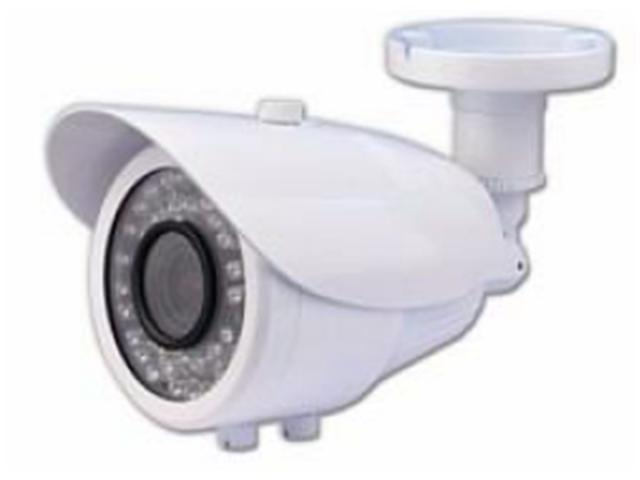

Outdoor IR Waterproof Colour Camera High Resolution with Auto IR cut filter • ¼" CMOS Sensor • 800 TV Lines • DC12V • 2.8~11mm Varifocal Lens • IR Range 30~40m
Specifications
Signal System : PAL
Sensor CCD : 1/4” CMOS Sensor
Pixel Effective : 752 (H) x 582 (V)
Horizontal resolution : 800 TV Lines
Lens : Varifocal 2.8 ~ 11 mm
Minimum Illumination : 0 LUX (IR ON)
S/N Ratio : More than 52dB
IR Range : 30~40m
View Angle : 30.3~93.5°
LED wave length : 42 unit @ 840 nM
Average Life : 20000 hours
Water Resistance : IP65
Video Output: 1Vp-p 75ohm | Y/C Separated
Connector video : BNC
Operation Temperature : -20°C to + 50°C
Supplied Power : l2Vcc (±10%)
Additional Information
Device
Camera
Type
Waterproof
Highlights
¼" CMOS Sensor | 800 TVL
Horizontal Definition (Resolution)
800 TV Lines
Viewing Angle
30.3~93.5°
Minimum Illumination
0 Lux（IR on）
Lens
2.8~11mm Verifocal IR Lens
Power Supply
DC12V
Open Transmission Distances
30~40m (IR)
TV System
PAL
Validity Pixel
752(H) x 582(V)
Experience superior surveillance with the XY3511CV800 Outdoor IR Waterproof Colour Camera. Featuring a high-resolution 800 TV lines and a versatile 2.8-11mm varifocal lens, this camera delivers clear images day and night, with an impressive IR range of 30-40m. Built to withstand the elements, its IP65 waterproof rating ensures reliable performance in any weather, making it the perfect choice for your security needs.
