09-4219-00-07

SKU: 09-4219-00-07

BRAND: Binder

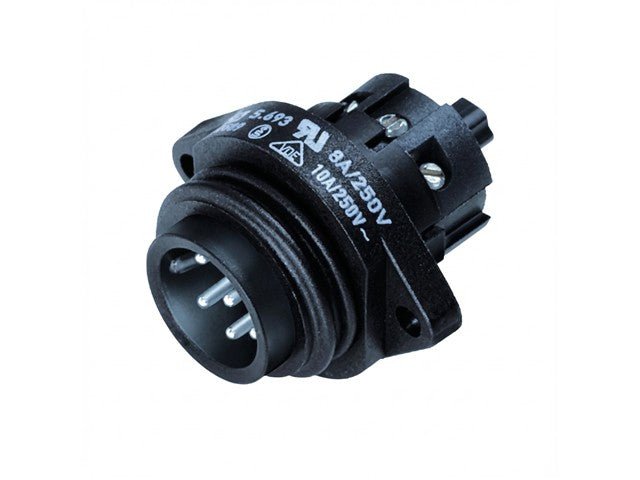

Circular Connector RD24 Machinry Panel Male 7 Pole Flang Mount Screw Term VDE Approved IP67

Overview

Features

Specification

General Values

  • Connector Design : male panel mount connector
  • Connector Locking System : Bolted
  • Termination : Screw
  • Wire Gauge (mm) : max. 1,5 mm²
  • Wire Gauge (AWG) : max. 16
  • Upper Limit Temperature : 100 °C
  • Lower Limit Temperature : -40 °C

Cable Data

  • Approval 1 : UL
  • Approval 2 : ESTI+
  • Approval 3 : VDE

Electrical Values

  • Rated Voltage : 250 V
  • Rated impulse voltage : 4000 V
  • Pollution Degree : 3
  • Overvoltage Category : II
  • Insulating Material Group : II
  • Rated Current (40 °C) : 10 A(8A UL)
  • Volume Resistivity : ≤ 5 mΩ
  • EMC Compliance : Shielded is not possible
  • Degree of Protection : IP67
  • Mechanical Operation : > 500 Mating cycles

Material

  • Contact Material : CuSn (mESSING)
  • Contact Plating : Ag (gold)
  • Contact Body Material : PBT
