3UF7000-1AU00-0

SKU: 3UF7000-1AU00-0

BRAND: Siemens


Basic Unit SIMOCODE pro C, PROFIBUS DP Interface 12 Mbit/s, RS 485, 4I/3O Freely Parameterizable, Us: 110...240 V AC/DC, Input for Thermistor Connection Monostable Relay Outputs

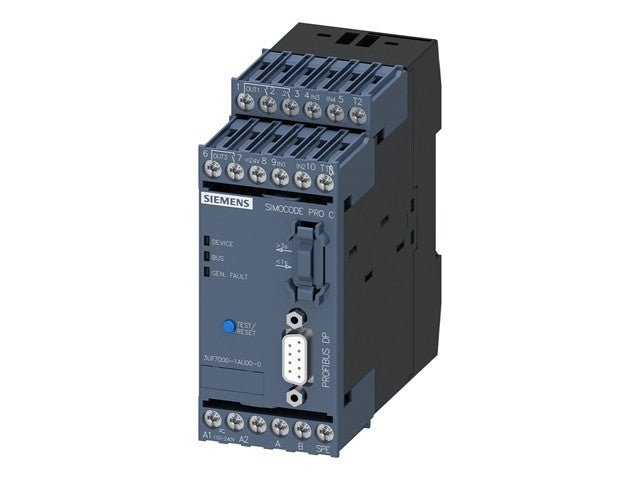

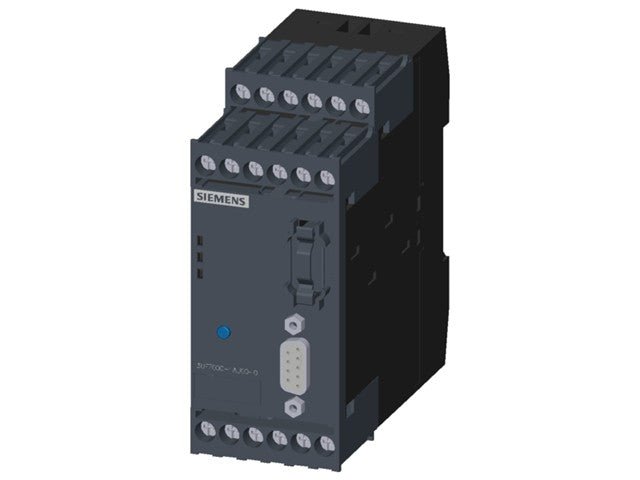

Basic unit SIMOCODE pro C

Specifications

Basic unit SIMOCODE pro C, PROFIBUS DP interface 12 Mbit/s, RS 485, 4I/3O freely parameterizable, Us: 110...240 V AC/DC, input for thermistor connection Monostable relay outputs
product brand name SIRIUS
product designation Motor management system
design of the product basic unit 1
product type designation SIMOCODE pro C
General technical data
product function
● bus communication Yes
● data acquisition function Yes
● diagnostics function Yes
● password protection Yes
● test function Yes
● maintenance function Yes
product component
● input for thermistor connection Yes
● digital input Yes
● input for analog temperature sensors No
● input for ground fault detection No
● relay output Yes
product extension
● temperature monitoring module No
● current measuring module Yes
● current/voltage measuring module No
● fail-safe digital I/O module No
● ground-fault monitoring module No
● control unit with display No
● control unit Yes
● analog I/O module No
apparent power consumption 5.3 VA
consumed active power 2.9 W
insulation voltage with degree of pollution 3 at AC rated value 300 V
surge voltage resistance rated value 4 000 V
protection class IP IP20
shock resistance
● according to IEC 60068-2-27 15g / 11 ms

● vibration resistance 1-6 Hz / 15 mm; 6-500 Hz / 2 g
switching capacity current of the NO contacts of the relay outputs at AC-15
● at 24 V 6 A
● at 120 V 6 A
● at 230 V 3 A
switching capacity current of the NO contacts of the relay outputs at DC-13
● at 24 V 2 A
● at 60 V 0.55 A
● at 125 V 0.25 A
mechanical service life (switching cycles) typical 10 000 000
electrical endurance (switching cycles) typical 100 000
buffering time in the event of power failure 0.05 s
reference code according to IEC 81346-2 F
continuous current of the NO contacts of the relay outputs
● at 50 °C 6 A
● at 60 °C 5 A
type of input characteristic Type 1 in accordance with EN 61131-2
Substance Prohibitance (Date) 05/01/2012
certificate of suitability
● according to ATEX directive 2014/34/EU BVS 06 ATEX F001
explosion device group and category according to ATEX directive 2014/34/EU II (2) G, II (2 ) D, I (M2)
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-4 2 kV (power ports) / 1 kV (signal ports)
● due to conductor-earth surge according to IEC 61000-4-5 2 kV
● due to conductor-conductor surge according to IEC 61000-4-5 1 kV
● due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 corresponds to degree of severity A
field-bound HF interference emission according to CISPR11 corresponds to degree of severity A

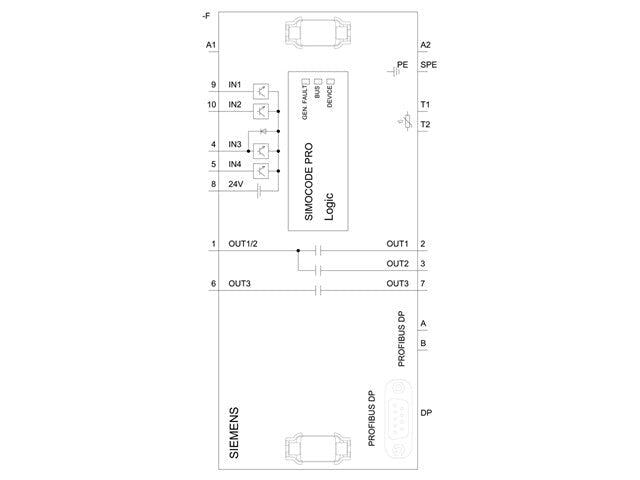

Inputs/ Outputs
product function
● parameterizable inputs Yes
● parameterizable outputs Yes
number of inputs 4
● for thermistor connection 1
number of digital inputs with a common reference potential 4
digital input version type 1 acc. to IEC 61131 Yes
input voltage at digital input at DC rated value 24 V
number of outputs 3
number of semiconductor outputs 0
number of outputs as contact-affected switching element 3
switching behavior monostable
type of relay outputs Monostable
wire length for digital signals maximum 300 m
wire length for thermistor connection
● with conductor cross-section = 0.5 mm² maximum 50 m
● with conductor cross-section = 1.5 mm² maximum 150 m
● with conductor cross-section = 2.5 mm² maximum 250 m
Protective and monitoring functions
product function
● asymmetry detection Yes
● blocking current evaluation Yes
● power factor monitoring No
● ground fault detection Yes
● phase failure detection Yes
● phase sequence recognition No
● voltage detection No
● monitoring of number of start operations Yes
● overvoltage detection No
● overcurrent detection 1 phase Yes
● undervoltage detection No
● undercurrent detection 1 phase Yes
● active power monitoring No
product function
● current detection Yes
● overload protection Yes
● evaluation of thermistor motor protection Yes
total cold resistance number of sensors in series maximum 1.5 kΩ
response value of thermoresistor 3 400 ... 3 800 Ω
● of the short-circuit control 9 Ω
release value of thermoresistor 1 500 ... 1 650 Ω
Motor control functions
product function
● parameterizable overload relay Yes
● circuit breaker control Yes
● direct start Yes
● reverse starting Yes
● star-delta circuit No
● star-delta reversing circuit No
● Dahlander circuit No
● Dahlander reversing circuit No
● pole-changing switch circuit No
● pole-changing switch reversing circuit No
● slide control No
● valve control No
Communication/ Protocol

● protocol is supported PROFIBUS DP protocol Yes
● protocol is supported PROFINET IO protocol No
● protocol is supported PROFIsafe protocol No
● protocol is supported Modbus RTU No
● protocol is supported EtherNet/IP No
● protocol is supported OPC UA Server No
● protocol is supported LLDP No
● protocol is supported Address Resolution Protocol (ARP) No
● protocol is supported SNMP No
● protocol is supported HTTPS No
● protocol is supported NTP No
● protocol is supported Media Redundancy Protocol (MRP) No
● product function is supported Device Level Ring (DLR) No
number of interfaces
● according to PROFINET 0
● according to PROFIBUS 1
● according to Ethernet/IP 0
product function
● web server No
● shared device No
● at the Ethernet interface Autocrossover No
● at the Ethernet interface Autonegotiation No
● at the Ethernet interface Autosensing No
● is supported PROFINET system redundancy No
● supports PROFIenergy measured values No
● supports PROFIenergy shutdown No
transfer rate maximum 12 Mbit/s
identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 – higher level designation/location designation Yes
● I&M2 - installation date Yes
● I&M3 - comment Yes
type of electrical connection of the communication interface 9-pin SUB-D socket (12 Mbit) / screw terminal (1.5 Mbit)

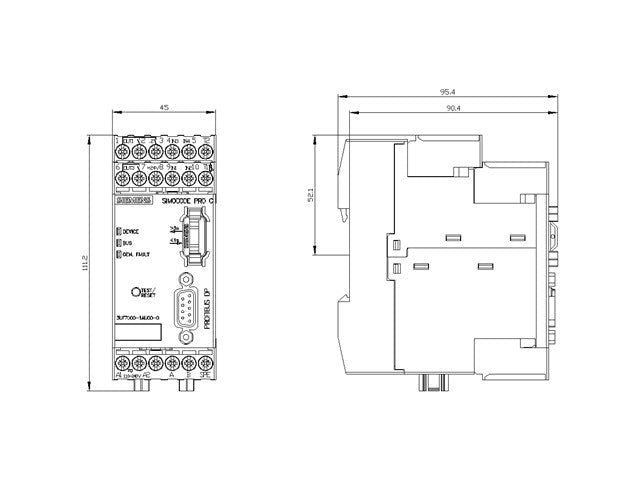

Installation/ mounting/ dimensions
mounting position any
fastening method screw and snap-on mounting
height 111 mm
width 45 mm
depth 95 mm
required spacing
● top 40 mm
● bottom 40 mm
● left 0 mm
● right 0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuit Yes
type of connectable conductor cross-sections
● solid 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
● finely stranded with core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables solid 1x (20 ... 12), 2x (20 ... 14)
● at AWG cables stranded 1x (20 ... 14), 2x (20 ... 16)
tightening torque with screw-type terminals 0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals 7 ... 10.3 lbf·in
type of connectable conductor cross-sections for PROFIBUS wire 2x 0.34 mm², AWG 22
Ambient conditions
installation altitude at height above sea level
● 1 maximum 2 000 m
● 2 maximum 3 000 m; max. +50 °C (no protective separation)
● 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation -25 ... +60 °C
● during storage -40 ... +80 °C
● during transport -40 ... +80 °C
environmental category
● during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
● during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity
● during operation 5 ... 95 %
contact rating of auxiliary contacts according to UL B300 / R300
Short-circuit protection
design of short-circuit protection per output Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
Safety related data
touch protection against electrical shock finger-safe
Galvanic isolation
(electrically) protective separation according to IEC 60947-1 All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
Control circuit/ Control
product function soft starter control No
type of voltage of the control supply voltage AC/DC
control supply voltage at AC
● at 50 Hz rated value 110 ... 240 V
● at 60 Hz rated value 110 ... 240 V
control supply voltage frequency
● 1 rated value 50 Hz
● 2 rated value 60 Hz
relative symmetrical tolerance of the control supply voltage frequency 5 %
control supply voltage at DC
● rated value 110 ... 240 V
operating range factor control supply voltage rated value at DC
● initial value 0.85
● full-scale value 1.1
operating range factor control supply voltage rated value at AC at 50 Hz
● initial value 0.85
● full-scale value 1.1
operating range factor control supply voltage rated value at AC at 60 Hz
● initial value 0.85
● full-scale value 1.1
inrush current peak
● at 240 V 3 A
duration of inrush current peak
● at 240 V 1 ms
