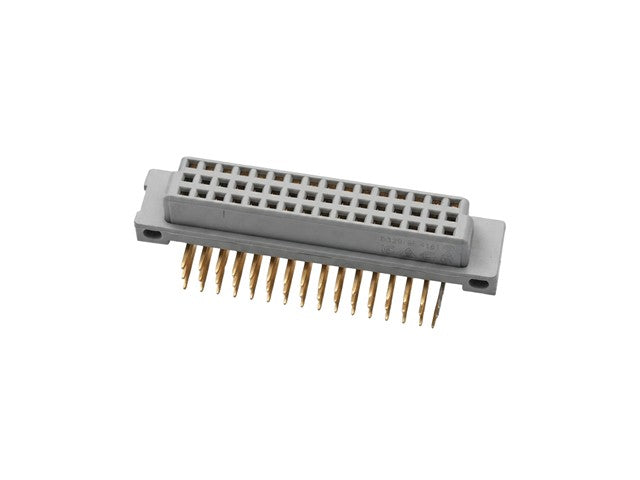

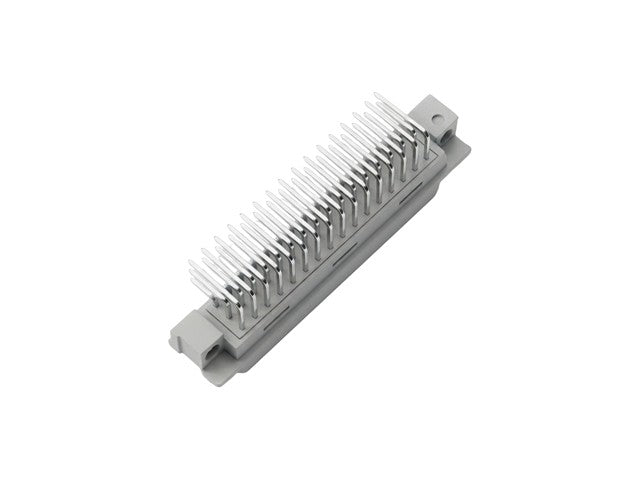

88382 Socket 48W 90° Rows A,B & C Type Half-R
Socket Connector
Feature(s)
- 48-way half-size DIN 41612 female socket
- Right-angle (90°) PCB mounting
- Triple-row (A, B & C) contact arrangement
- Gold-plated contacts for reliable signal transmission
- Rugged thermoplastic housing
- Designed for Eurocard and backplane applications
- High mechanical durability and secure mating
Specifications
- Product Type: DIN 41612 Eurocard Socket Connector
- Model Number: 88382
- Connector Style: Right-Angle (90°)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Female (Socket)
- Number of Contacts: 48
- Contact Arrangement: Rows A, B & C (Half-R Configuration)
- Contact Configuration: 3 × 16
- Mounting Type: Through-Hole PCB Mount
- Orientation: Right-Angle (90°)
- Termination Type: Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold-Plated over Nickel
- Housing Material: Glass-Filled Thermoplastic
- Housing Color: Grey
- Rated Current: Up to 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1,000 MΩ
- Dielectric Withstanding Voltage: 1,000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Connector |
| Type |
Socket | Type | Half-R | 48W |
| Gender |
Female |
| No. of Contacts |
48 |
| No. of Pins |
48 |
| Termination |
Right Angled PCB |
| Row Positions |
Rows A,B,C |
Upgrade your electronic projects with the 48S 6043 0731 0 DIN 41612 Eurocard Socket Connector. This robust 48-way female socket features gold-plated contacts for superior signal integrity and durability, perfect for reliable PCB mounting in Eurocard and backplane applications. Enjoy easy installation with its right-angle design and experience seamless performance even in extreme conditions.
