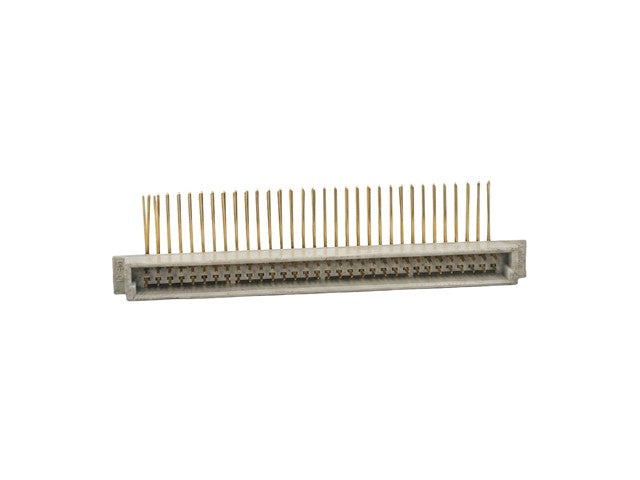

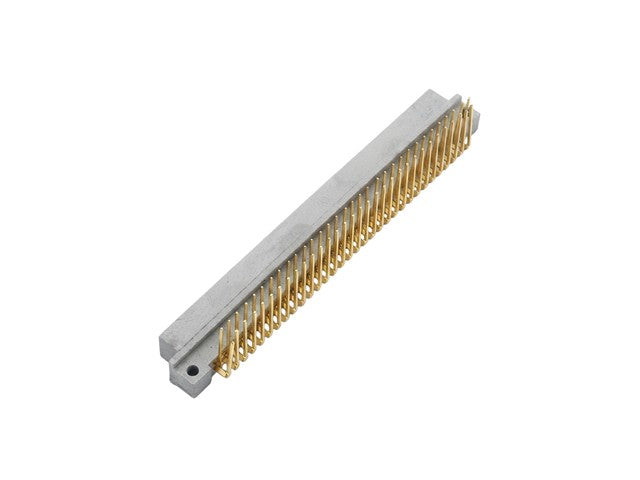

89292 Plug 32W Right-Angle 90° PCB
PCB Plug Connector
Feature(s)
- Standard DIN 41612 male plug
- 32-way single-row configuration
- Right-angle (90°) through-hole PCB mounting
- Gold-plated contacts for reliable conductivity
- Rugged glass-filled thermoplastic housing
- Low insertion force with secure mating
- Designed for industrial backplane and Eurocard systems
Specifications
- Product Type: DIN 41612 PCB Plug Connector
- Model Number: 89292
- Connector Style: Right-Angle (90°)
- Standard: DIN 41612 / IEC 60603-2
- Number of Contacts: 32
- Contact Configuration: Single Row (Row A)
- Connector Gender: Male (Plug)
- Mounting Type: Through-Hole PCB Mount
- Orientation: Right-Angle (90°)
- Termination Type: Solder Pins
- Contact Pitch: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold-Plated Contact Area over Nickel
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Rated Current: Up to 2 A per Contact
- Rated Voltage: 1000 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1 × 10⁶ MΩ
- Dielectric Withstanding Voltage: 1000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Connector |
| Type |
DIN41612 | PCB | Plug | Connector |
| Gender |
Male |
| No. of Contacts |
32 |
| No. of Pins |
32 |
| Termination |
Right Angled PCB |
| Row Positions |
Rows A |

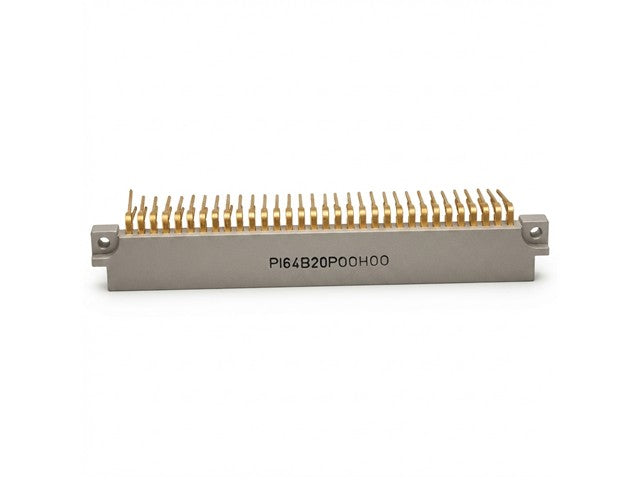

Upgrade your industrial systems with the 64P 6033 0131 0 Right-Angle DIN 41612 PCB Plug Connector. Featuring 32 gold-plated contacts for superior conductivity and a rugged thermoplastic housing, this connector ensures reliable performance and easy installation. Designed for durability, it supports a wide temperature range and is RoHS compliant, making it the perfect choice for your backplane and Eurocard applications.
