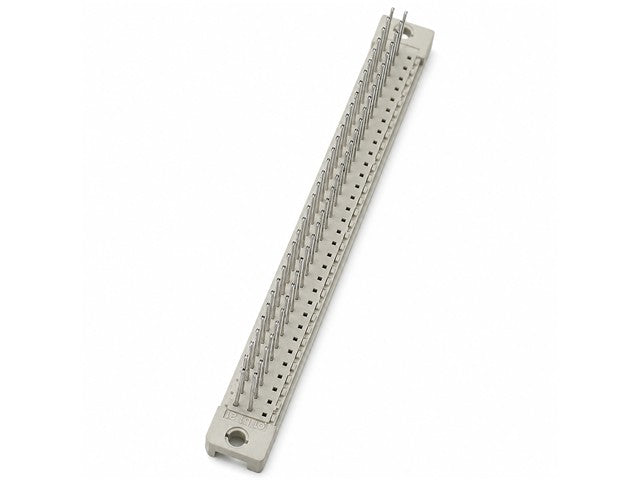

89286 Socket 64W Rows A & B (RAB) Straight Wire Wrap
Socket Connector
Feature(s)
- 64-way DIN 41612 female socket
- Straight (vertical) PCB mounting
- Rows A & B populated
- Wire-wrap termination for backplane wiring
- Gold-plated contacts for reliable electrical performance
- Rugged glass-filled thermoplastic housing
- Polarized design for secure mating
- Suitable for Eurocard and industrial backplane systems
Specifications
- Product Type: DIN 41612 Eurocard Socket Connector
- Model Number: 89286
- Connector Style: Straight (Vertical)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Female (Socket)
- Number of Contacts: 64
- Contact Arrangement: Rows A & B (RAB)
- Contact Configuration: 2 × 32
- Mounting Type: Through-Hole PCB Mount
- Orientation: Straight (Vertical)
- Termination Type: Wire Wrap
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Wire Wrap Tail Length: 13 mm (Typical)
- Contact Material: Copper Alloy
- Contact Plating:
- Gold-plated mating contacts
- Tin-plated wire-wrap tails
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Rated Current: 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1 × 10⁶ MΩ
- Dielectric Withstanding Voltage: 1000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Connector |
| Type |
DIN41612 | Socket | Connector |
| Gender |
Female |
| No. of Contacts |
64 |
| No. of Pins |
64 |
| Termination |
Straight Wire Wrap |
| Row Positions |
Rows A,B |
Discover the 64S 6033 0431 1, a high-performance 64-way DIN 41612 female socket connector designed for reliable backplane wiring. With gold-plated contacts and a rugged thermoplastic housing, this connector ensures optimal electrical performance and durability. Perfect for Eurocard and industrial applications, it offers secure mating and easy PCB mounting. Upgrade your connections with this robust and efficient solution today!
