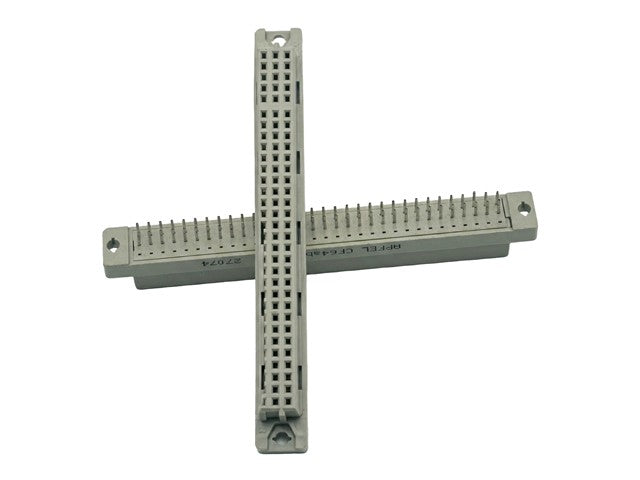

89297-4 Socket 64W Rows A & B (RAB) Straight PCB
Socket Connector
Feature(s)
- 64-way DIN 41612 female socket
- Straight (vertical) PCB mounting
- Rows A & B fully populated (2 × 32 contacts)
- Gold-plated contacts for low contact resistance
- Through-hole solder termination
- Rugged glass-filled thermoplastic housing
- Polarized design for secure mating
- Suitable for Eurocard and industrial backplane applications
Specifications
- Product Type: DIN 41612 Eurocard Socket Connector
- Model Number: 89297-4
- Connector Style: Straight (Vertical)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Female (Socket)
- Number of Contacts: 64
- Contact Arrangement: Rows A & B (RAB)
- Contact Configuration: 2 × 32
- Mounting Type: Through-Hole PCB Mount (THT)
- Orientation: Straight (Vertical)
- Termination Type: Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Tail Length: 4.0–4.5 mm
- Contact Material: Copper Alloy
- Contact Plating:
- Gold-plated mating contacts
- Tin-plated solder tails
- Housing Material: Glass-Filled Thermoplastic (PBT/Polyester)
- Housing Color: Grey
- Rated Current: 2 A per Contact
- Rated Voltage: 250 V AC
- Dielectric Withstanding Voltage: 1000 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1 × 10⁶ MΩ
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Polarization: Keyed Housing
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Connector |
| Type |
DIN41612 | Socket | Connector |
| Gender |
Female |
| No. of Contacts |
64 |
| No. of Pins |
64 |
| Termination |
Straight PCB |
| Row Positions |
Rows A,B |
Enhance your connectivity with the 64S 6033 0431 2 DIN 41612 Female Socket Connector. Featuring 64 gold-plated contacts for superior conductivity and a rugged thermoplastic housing, this reliable socket ensures secure mating and long-lasting performance in Eurocard and industrial applications. Upgrade your PCB designs with this high-quality, RoHS-compliant connector that withstands extreme temperatures and delivers optimal efficiency.
