6ES7231-0HC22-0XA0

SKU: 6ES7231-0HC22-0XA0

BRAND: DQ 4x 24VDC/2A

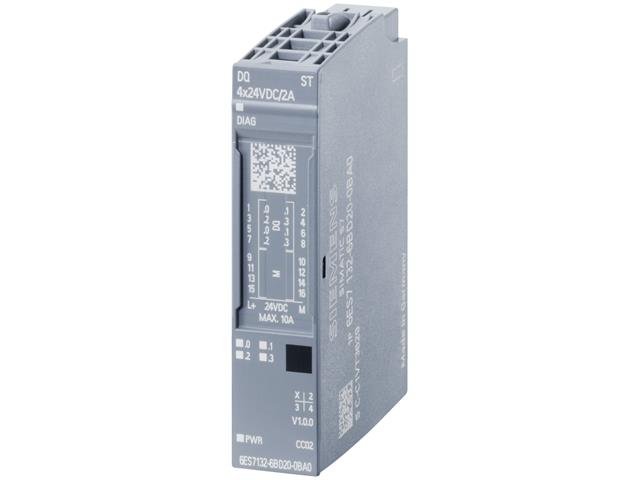

SIMATIC ET 200SP, Digital Output Module, DQ 4x 24VDC/2A

SIMATIC ET 200SP, Digital Output Module, DQ 4x 24VDC/2A

Specifications

  • Outputs: 4 × 24 V DC, 2 A (PNP, source)
  • Supply Voltage: 19.2–28.8 V DC (recommended 24 V)
  • Diagnostics: Short-circuit, wire-break, module-level
  • Firmware: V1.1 (up to V1.1.5)
  • Communications: PROFIBUS & PROFINET supported
  • Address Size: 1 byte + 1 byte for QI
  • Redundancy: Supported
  • Power Loss: ~1 W
  • Dimensions: 15 mm width; ~30 g weight
  • Cable Lengths: 600 m unshielded; 1000 m shielded
