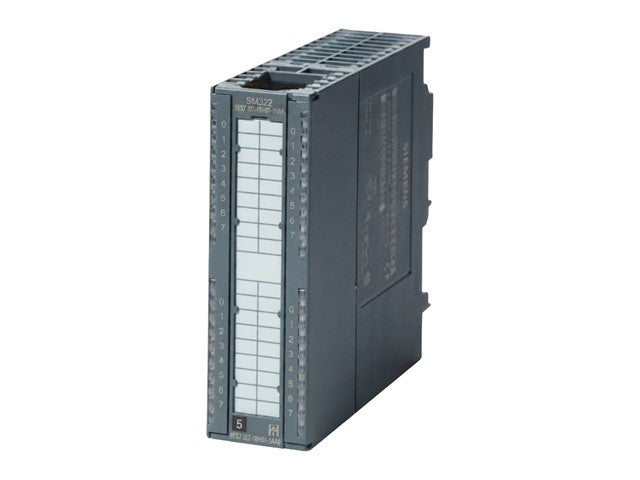

SIMATIC S7-300, Digital Output SM 322, Isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0
SIMATIC S7-300, Digital Output

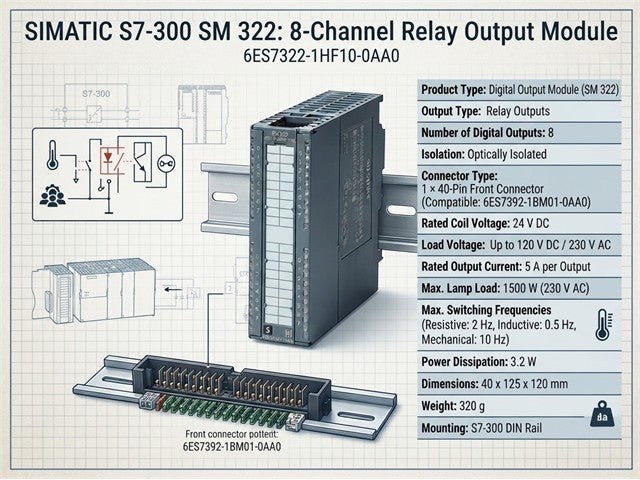

Specifications
Product Type: Digital Output Module (SM 322)
Output Type: Relay Outputs
Number of Digital Outputs: 8
Isolation: Optically Isolated
Connector Type: 1 × 40-Pin Front Connector
Compatible Front Connector: 6ES7392-1BM01-0AA0 (spring-loaded terminal version supported)
Rated Relay Coil Supply Voltage: 24 V DC
Load Voltage (DC): Up to 120 V DC
Load Voltage (AC): Up to 230 V AC
Rated Output Current: 5 A per Output
Minimum Load Current: 5 mA
Maximum Lamp Load: 1500 W (230 V AC)
Maximum Switching Frequency:
Resistive Load: 2 Hz
Inductive Load: 0.5 Hz
Mechanical: 10 Hz
Backplane Bus Current: 40 mA (5 V DC)
Supply Current: 125 mA (24 V DC)
Typical Power Dissipation: 3.2 W
Short-Circuit Protection: No (external protection required)
Dimensions (W × H × D): 40 × 125 × 120 mm
Weight: Approximately 320 g
Mounting: SIMATIC S7-300 DIN Rail / Rack
Operating Temperature: 0°C to +60°C
Isolation: Galvanic isolation between backplane bus and outputs
Additional Information
Device
Digital Output
Type
SIMATIC | S7-300 | Digital | Output

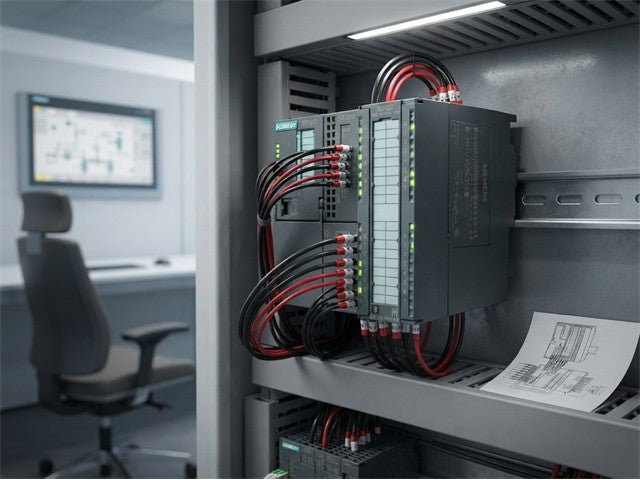

Upgrade your automation with the 6ES7322-1HF10-0AA0 Digital Output Module. This isolated 8-channel relay output module delivers reliable performance at 24 V DC or 230 V AC, supporting loads up to 1500 W. Designed for seamless integration with SIMATIC S7-300 systems, it ensures optimal control and efficiency for your industrial applications. Experience enhanced operational safety and reliability today!
