SIMATIC S7-400, CPU 417-4 CPU - Work memory 32 MB, (16 MB each code;/data) 1st interface MPI 12 Mbit/s; 2nd interface PROFIBUS DP, 3rd/4th interface plug-in IFM module

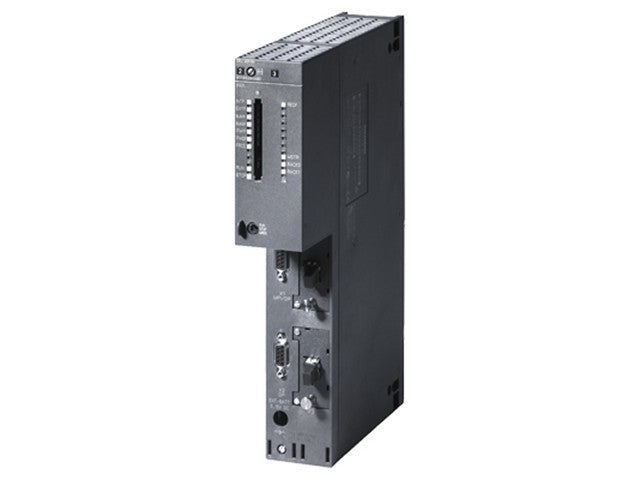

SIMATIC S7-400, CPU 417-4 CPU
Specifications
- Product Type: CPU 417-4 Central Processing Unit (PLC CPU)
- Firmware Version: V7.0
- Working Memory: 32 MB
- 16 MB Program Memory
- 16 MB Data Memory
- Load Memory:
- Expandable with FEPROM Memory Card
- Integrated RAM
- Expandable RAM
- Power Supply: Via S7-400 System Power Supply (Backplane)
- Typical Power Consumption: 6.5 W
- Backplane Bus Current:
- Typical: 1.3 A (5 V DC)
- Maximum: 1.6 A (5 V DC)
- Communication Interfaces:
- 1 × MPI Interface (12 Mbit/s)
- 1 × PROFIBUS DP Interface (12 Mbit/s)
- 2 × Plug-in IFM Module Slots
- Programming Software:
- STEP 7 V5.4 or later
- Hardware Support Package (HSP) 261 or later
- Programming Languages:
- LAD
- FBD
- STL
- SCL
- GRAPH
- HiGraph
- CFC
- Process Image:
- Up to 131,072 Digital I/O
- Up to 8,192 Analog I/O
- Configuration in RUN (CiR): Supported
- Integrated Diagnostics: Yes
- Battery Backup: Yes
- Mounting: SIMATIC S7-400 Rack
- Dimensions (W × H × D): 50 × 290 × 219 mm
- Net Weight: Approximately 1.06 kg
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +70°C
- Certifications:
- Product Lifecycle: PM300 (Active Product)
- Typical Applications:
- Large-scale industrial automation
- Process control systems
- Manufacturing plants
- Power generation
- Chemical and petrochemical industries
- Water and wastewater treatment
- High-performance PLC applications
Additional Information
| Device |
CPU |
| Type |
SIMATIC | S7-400 | CPU | 417-4 | CPU |
Upgrade your industrial automation with the SIMATIC S7-400 CPU 417-4. Featuring 32 MB of memory and versatile communication interfaces, this powerful PLC ensures seamless process control in manufacturing and large-scale operations. Optimize your system's performance with expandable memory and integrated diagnostics, making it a reliable choice for diverse applications.
