6GK1901-1BB10-2AA0

SKU: 6GK1901-1BB10-2AA0

BRAND: Siemens

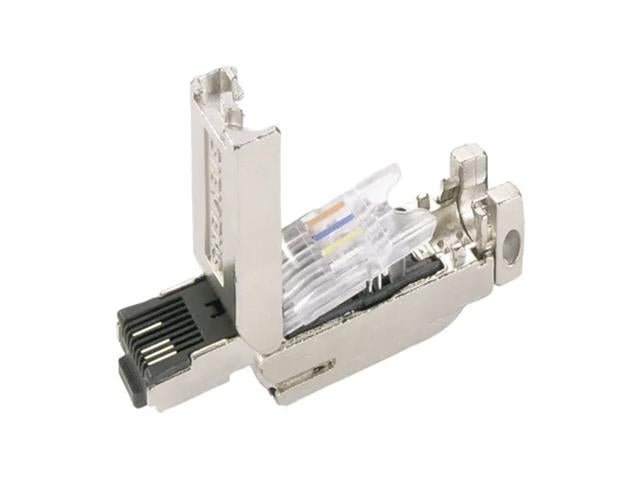

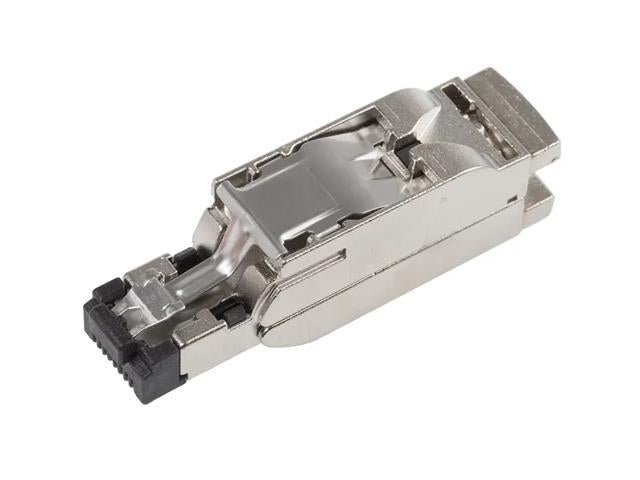

RJ45 Connector - Industrial Ethernet / Profinet 2 x 2 IDC Terminal. Metal Housing 10/100MB/s

Industrial Ethernet / Profinet 2 x 2 IDC Terminal

Overview

Transfer data with efficiency and security in industrial environments using this Siemens male Ethernet connector. The RJ45 (Registered Jack) plug features FastConnect technology to minimize installation errors and ensure reliable transmission. It's also simple to install thanks to its sophisticated quick-assembly system. Exceptional EMC (electromagnetic compatibility) shielding minimizes interference from nearby electrical components for a clear and precise signal, while rugged metal housing ensures a long service life and durability, so it can be reused up to 10 times. This connector is compatible with 4-core industrial Ethernet cables in applications with speeds of up to 100Mbits (megabits) and achieves direct device connection of up to 100m without the need for patching technology.

• Integrated strain relief for additional strength and durability to prevent breakage and signal loss
• IP20 (ingress protection) rating means it's touch-proof for greater electrical safety
• Light weight of just 35g for ease of handling
• Meets industrial cable technology requirements for universal use

What is FastConnect technology?

The Siemens FastConnect series offers a comprehensive system of coordinated cables and connectors for maximum network efficiency. The products in this series have colour-coded insulation-displacement terminations, making it fast and simple to configure your bus system or network.

Feature(s)

  • Ethernet Connector Type : RJ45 Connector
  • Gender : Male
  • LAN Category : Cat5
  • Mounting Type : Cable Mount
  • Number of Ways : 4
  • Shield Type : Shielded
  • Orientation : Straight
  • IP Rating : IP20
  • Length : 16mm
  • Width : 13.7mm
  • Depth : 55mm

Additional Information

Device RJ45 Connector
Type Industrial Ethernet | Profinet | 2 x 2 IDC Terminal
